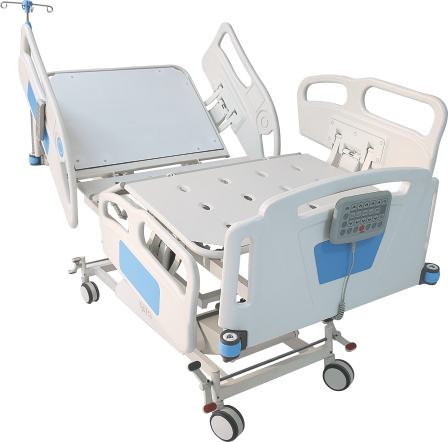

ICU BED MOTORISED (Side Tilt) VDS-101
Description
Positions Opreted by Nurse Control Panel (NCP) & Patient Hand Remote: Side Tilt, Backrest, Kneerest, Trendelenburg & Reverse Trendelenburg, Hi – Low, CPR, LED Night Lamp and Battery Indicator.
Dual Side Manually Operated CPR (For Backrest).
One Touch button for Chair Position, Auto CPR (For Zero Position).
Battery Backup
Polymer Moulded Head and Foot Panels easily removable without using any tools with corner buffer
Polymer Moulded Four individual Side Rails With Inbuilt Bed Angle Indicator
Framework made-up of CRCA Tubes.
4 Section Platform Top made-up of Perforated CRCA Sheet.
Bed Mounted on ABS cover base with 125mm Central Locking Twin Wheel Castors along with directional Lock.
Linen Holder for fresh Bedsheet under the footside panel.
Heavy Duty I.V Rod and Provision at 4 Locations.
Urine Bag Holder on Both Sides.
Finish: Pre-treated & Epoxy Powder Coated.
Dimensions (Approx.)
Overall Size: 2230L x 1010W x 590 – 870H mm.
Angle of Back Section: 75°
Angle of Knee Section: 35°
Angle of Trendelenburg / Reverse Trendelenburg: 12° / 12°
Angle of side tilt (Left and Right) 24°
Optional Accessories
4 Section PU Foam Mattress with Zipper Rexine Cover
X-ray Translucent Top for Backrest with X-ray Cassette Holder Beneath Backrest
Polymer 4 Section Platform Tops.
Extension frame for Bed.

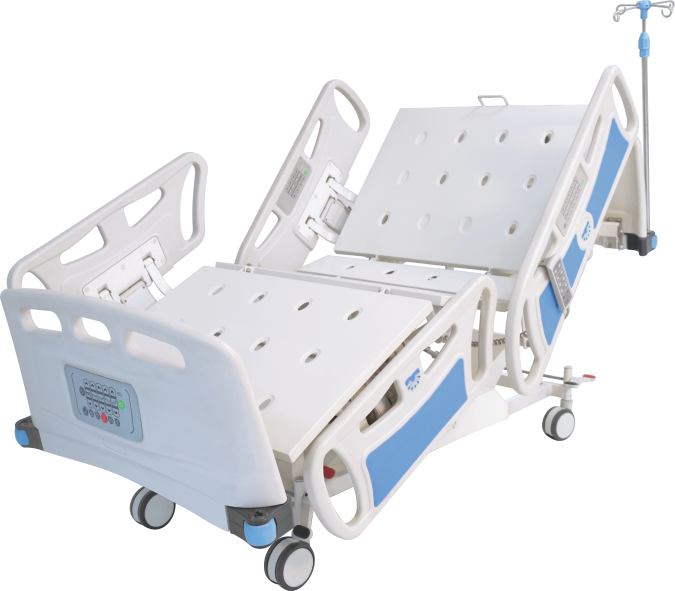

ICU BED MOTORISED (7 Function) VDS-102
Description
Positions Operated by Nurse Control Panel (inbuilt on bed penal) & Patient Hand Remote; Backrest, Kneerest, Trendelenburg & Reverse Trendelenburg, Hi–Low, CPR, LED Night Lamp and Battery Indicator.
Inbuilt Control system in Side Railing
Dual Side Manually Operated CPR (For Backrest).
One Touch button for Chair Position, Auto CPR (For Zero Position).
Battery Backup
Polymer Moulded Head and Foot Panels easily removable without using any tools with corner buffer
Polymer Moulded Four individual Side Rails With Inbuilt Bed Angle Indicator
Framework made-up of CRCA Tubes.
4 Section Platform Top made-up of Perforated CRCA Sheet.
Bed Mounted on ABS cover base 125mm Central Locking Twin Wheel Castors along with directional Lock.
Linen Holder for fresh Bedsheet under the footside panel.
Heavy Duty I.V Rod and Provision at 4 Locations.
Urine Bag Holder on Both Sides.
Finish: Pre-treated & Epoxy Powder Coated.
Dimensions (Approx.)
Overall Size: 2230L x 1050W x 450 – 750H mm
Angle of Back Section: 70°
Angle of Knee Section: 25°
Angle of Trendelenburg / Reverse Trendelenburg: 12° / 12°
Optional Accessories
4 Section PU Foam Mattress with Zipper Rexine Cover
X-ray Translucent Top for Backrest with X-ray Cassette Holder Beneath Backrest
ABS 4 Section Platform Tops.
Bed Extension.

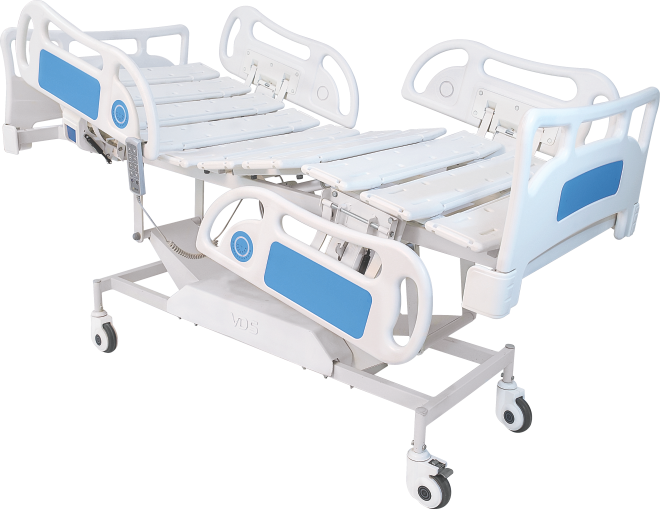

ICU BED MOTORISED ABS PLATFORM (5 Function) VDS-103
-
Description
Backrest, Kneerest, Trendelenburg, Reverse Trendelenburg & Hi-Low Operated By Hand Remote System.
Dual Side Manually Operated CPR (For Backrest).
Polymer Moulded Head and Foot Panels easily removable without using any tools with corner buffer
Polymer Moulded Four individual Side Rails With Inbuilt Bed Angle Indicator
Framework made-up of CRCA Tubes.
4 Section Platform Top made-up of bed board plank (ABS)
Bed Mounted on ABS cover base 125mm Diagonal locking Twin Wheel Castors
Heavy Duty I.V Rod and Provision at 4 Locations.
Urine Bag Holder on Both Sides.
Finish: Pre-treated & Epoxy Powder Coated.
Dimensions (Approx.)
Overall Size: 2230L x 1050W x 450 – 750H mm
Angle of Back Section: 75°
Angle of Knee Section: 25°
Angle of Trendelenburg / Reverse Trendelenburg: 12° / 12°
Optional Accessories
4 Section PU Foam Mattress with Zipper Rexine Cover
Central Locking Castors with direction Lock.
Battery Backup
ABS Platform on top for bed.

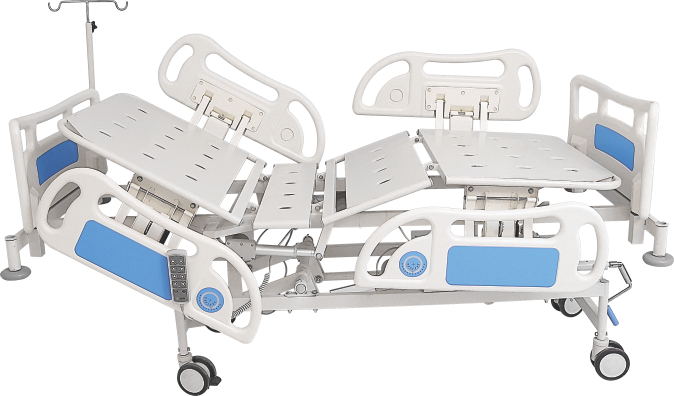

ICU BED MOTORISED (3 Function) VDS-104
-
Description
Backrest, Kneerest, Hi-Low & CPR Operated By Hand Remote System.
Trendelenburg, Reverse Trendelenburg operated by manual crank system.
Polymer Moulded Head and Foot Panels easily removable without using any tools with corner buffer
Polymer Moulded Four individual Side Rails With Inbuilt Bed Angle Indicator
Framework made-up of CRCA Tubes.
4 Section Platform Top made-up of Perforated CRCA Sheet.
125mm Diagonal locking Twin Wheel Castors
Heavy Duty I.V Rod and Provision at 4 Locations.
Urine Bag Holder on Both Sides.
Finish: Pre-treated & Epoxy Powder Coated.
Dimensions (Approx.)
Overall Size: 2230L x 1080W x 580 – 880H mm
Angle of Back Section: 75°
Angle of Knee Section: 25°
Angle of Trendelenburg / Reverse Trendelenburg: 12° / 12°
Optional Accessories
4 Section PU Foam Mattress with Zipper Rexine Cover
Central Locking Castors with direction Lock.
Battery Backup
Polymer Platform on top for Bed
BED SIDE LOCKER (ABS Top & Cabinet) VDS-201
Description
Locker made of CRCA sheets/ Square CRCA Pipe.
Top, Drawer & Cabinet door made-up of Premium quality of Polymer.
Mounted on 50 mm wheels at rear and 2 pcs PVC stumps/ Shoes in front.
Finish: Pretreated & Epoxy Powder Coated.
Overall Size: 400L x 400W x 850H mm
BED SIDE LOCKER (Fully ABS) VDS-202
Description
Locker made of premium quality of Polymer.
Provide with single Cabinet, Drawer, Tray & Towel rail with Polymer.
Mounted on 50 mm 4 wheels.
Overall Size: 450L x 420W x 775H mm.
BED SIDE LOCKER (DLX.) VDS-203
Description
Locker made of CRCA sheets/ Square CRCA Pipe.
Top made-up of Stainless Steel & Drawer & Cabinet door CRCA Sheet.
Mounted on 50 mm wheels at rear and 2 pcs PVC stumps/ Shoes in front.
Finish: Pretreated & Epoxy Powder Coated.
Overall Size: 400L x 400W x 850H mm
BED SIDE LOCKER (STD.) VDS-204
Description
Locker made of CRCA sheets/ Square CRCA Pipe.
Top made-up of Stainless Steel & Drawer & Cabinet door CRCA Sheet.
Mounted on 50 mm wheels at rear and 2 pcs PVC stumps/ Shoes in front.
Finish: Pretreated & Epoxy Powder Coated.
Overall Size: 400L x 400W x 850H mm
OVER BED TABLE (PNEUMATIC) VDS-205
Description
Polymer premium quality Top with CRCA Heavy quality frame.
CRCA Square Pipe telescopic section fitted with gas spring pump for height adjustment .
M.S Heavy base for better stability.
Mounted on 50 mm wheels.
Finish: Pretreated & Epoxy Powder Coated.
Overall Size: 890L x 435W x 790 – 1070H mm.
Top Size: 880L X 435W X 28H mm.
OVER BED TABLE (GEAR) VDS-206
Description
Polymer premium quality Top with CRCA Heavy quality frame.
CRCA Square Pipe telescopic section fitted with smooth gear mechanism for height adjustment .
M.S Heavy base for better stability.
Mounted on 50 mm wheels.
Finish: Pretreated & Epoxy Powder Coated.
Overall Size: 1000L x 435W x 825 – 1180H mm
Top Size: 880L X 435W X 28H mm

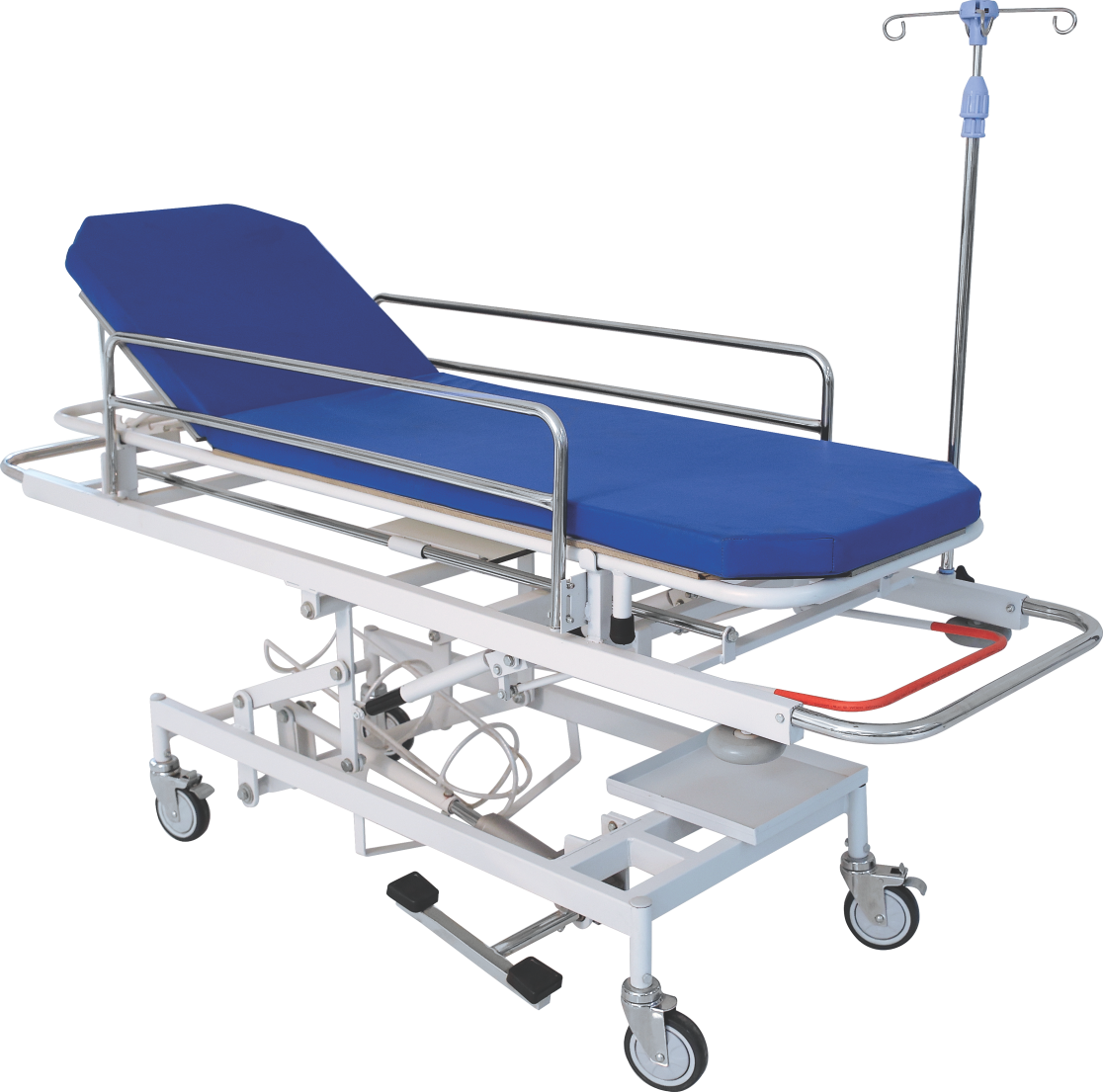

EMERGENCY & RECOVERY TROLLEY (HYDRAULIC) VDS-301
Description
Frame made of rectangular CRCA Pipe with Stainless Steel swing away railing.
Operated by Smooth Pneumatic pump for Trendelenburg and Reverse Trendelenburg positions.
Height Adjustable by hydraulic pump system.
Removable two section X-Ray permeable top with Head Raise on Ratchet Mechanism.
Trolley Mounted on 125 mm diagonal locking castors
Provided with Oxygen Cylinder Cage, Sliding X-ray Cassette holder, Drop down safety side railings, Telescopic I.V. Rod, Utility Tray and Suitable Mattress of 50 mm.
Finish: Pretreated and Epoxy powder coated.
Dimensions (Approx.)
Overall Size: 2100L x 570W x 650 – 950H mm.
Stretcher top Size: 1940L x 605W mm
Back Section: 70°

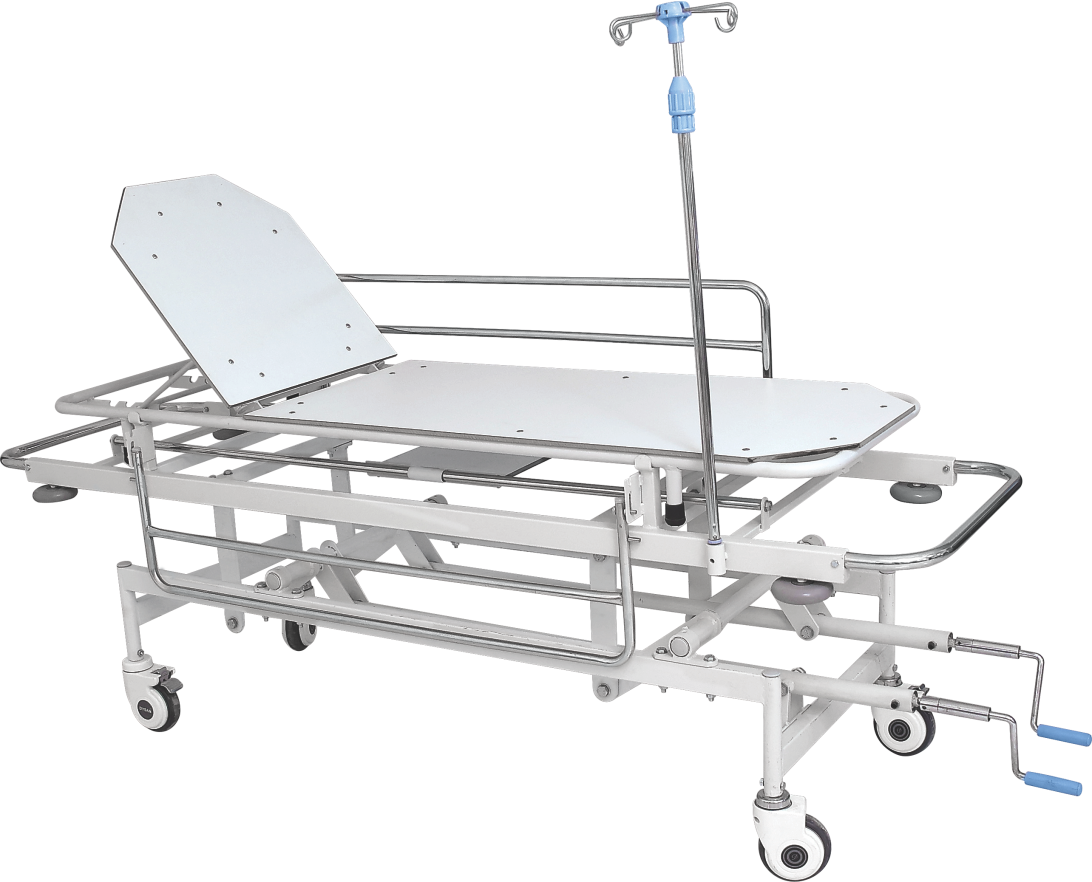

EMERGENCY & RECOVERY TROLLEY (MANUAL) VDS-302
Description
Frame made of rectangular CRCA Pipe with Stainless Steel swing away railing.
Operated by Smooth manual crank system for Trendelenburg and Reverse Trendelenburg positions.
Height Adjustable by manual crank system.
Removable two section X-Ray permeable top with Head Raise on Ratchet Mechanism.
Trolley Mounted on 125 mm diagonal locking castors
Provided with Oxygen Cylinder Cage, Drop down safety side railings, Telescopic I.V. Rod, Utility Tray and Suitable Mattress of 50 mm.
Finish: Pretreated and Epoxy powder coated.
Dimensions (Approx.)
Overall Size: 2100L x 570W x 650 – 950H mm.
Stretcher top Size: 1940L x 605W mm
Back Section: 70°

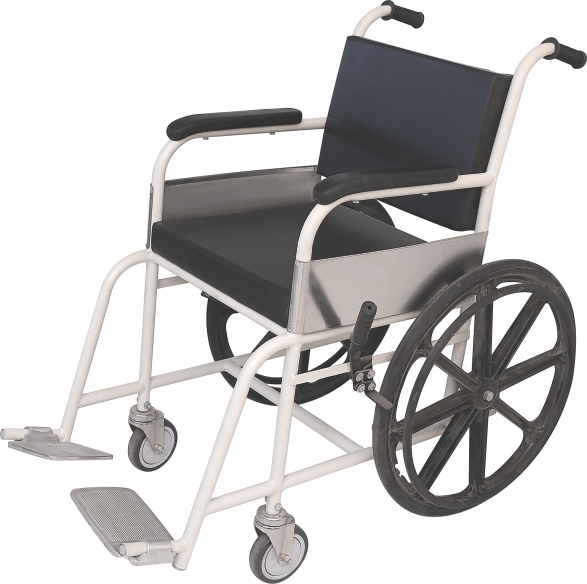

WHEELCHAIR FOLDING VDS-804
Features and Benefits
Non folding 17” seat and fixed cushioned back rest, fixed arm rest, 5” front castors, 26” rear wheel with brakes.
Pre-treated Epoxy powder coated
Dimension : 39”L x 25”W x 36”H
Note : Also available in Stainless Steel

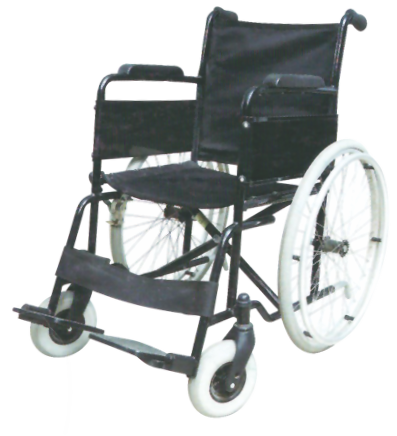

WHEELCHAIR FOLDING VDS-805
Features and Benefits
Foldable wheelchair 17” square seat, fixed arm-rest, 26” rear wheel, 6” front castors.
Pre-treated powder coated
Dimension : 42”L x 26”W x 36”H

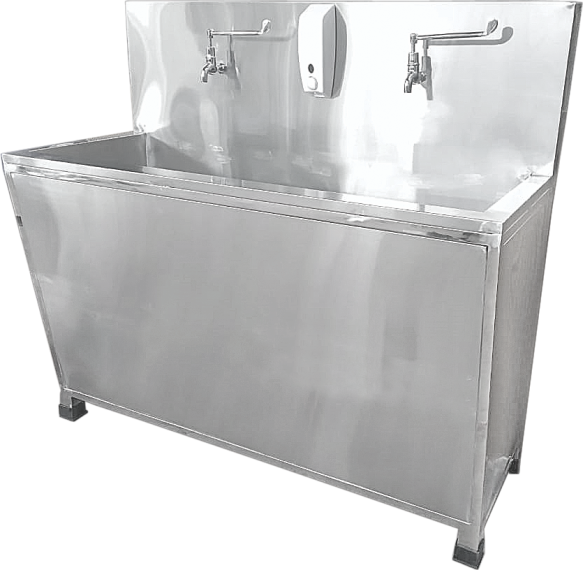

TWO USERS SCRUB STATION ELBOW OPERATED VDS-806
Features and Benefits
Manufactured with heavy gauge stain finish sheets for durability.
Size : 1450L x 540W X 840H mm

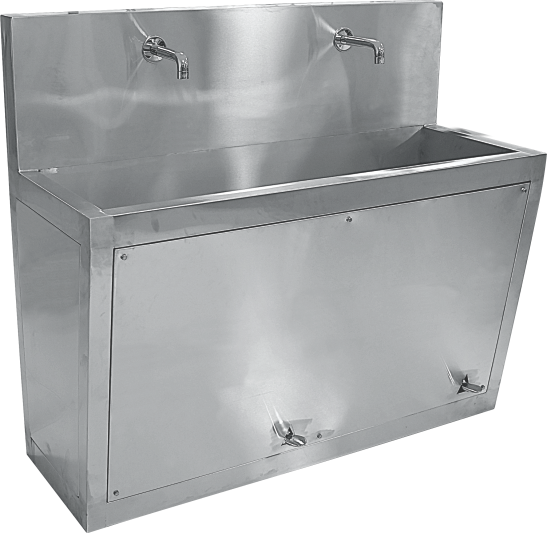

TWO USERS SCRUB STATION FOOT OPERATED VDS-807
Features and Benefits
Manufactured with heavy gauge stain finish sheets for durability.
Size : 1450L x 540W X 840H mm

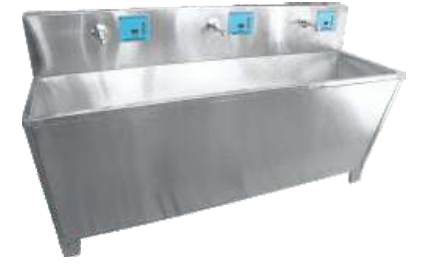

THREE USERS SCRUB STATION SENSOR CONTROL VDS-808
Features and Benefits
Manufactured with heavy gauge stain finish sheets for durability.
Size : 1950L x 540W X 840H mm

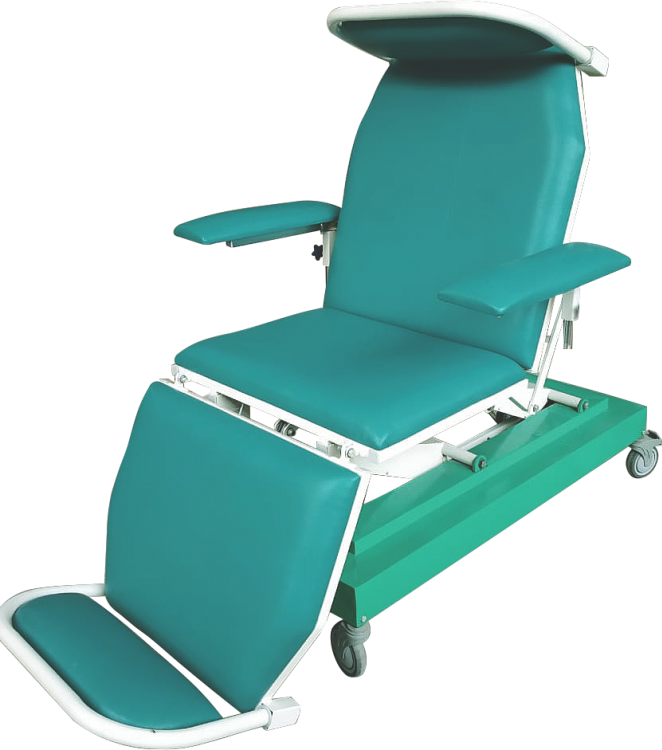

DIALYSIS BED (MOTORIED) VDS-801
Description
Framework made of CRCA Tubular & mounted on 125mm Diagonal Locking Heavy duty castors.
Three-section Platform top with Adjustable height with high density Moulded PU Mattress.
Operated: Backrest, Kneerest& Hi – Low by hand remote
Single Button Chair Position.
Easy detachable head & foot panel (foam padded panel )
Mechanism covered by heavy duty CRCA base.
Telescopic heavy I.V. Rod with 4 hooks
Foam paded adjustable handrest on both sides
Finish: Pretreated and epoxy powder coated.
Dimensions (Approx.):
Overall Size: 1900L x 750W x 670-970 mm.
Backrest : 85°
Kneerest : 80° (Down)

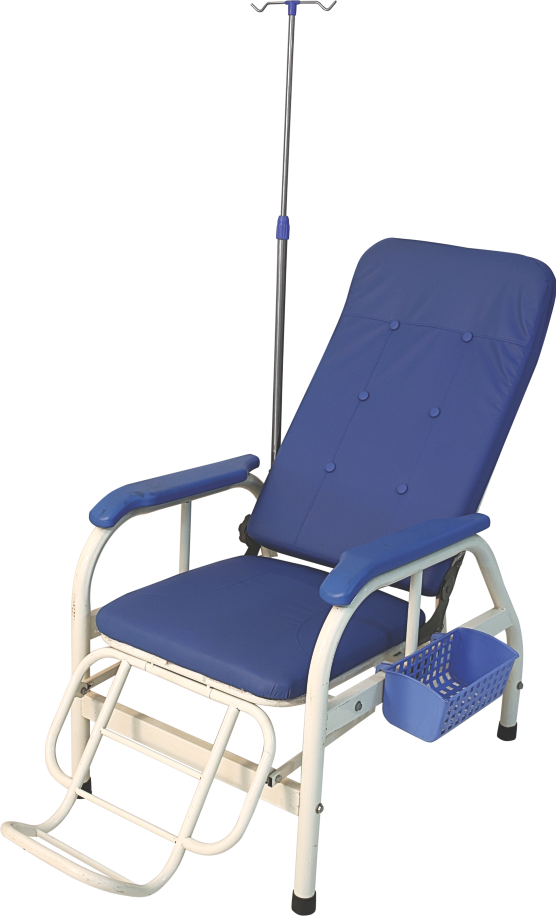

BLOOD TRANSFUSION CHAIR VDS-802
Description
Framework made of CRCA tube.
The fabric is pressed PU artificial leather
Three angles adjustable
Single side basket & IV Rod .
Finish: Epoxy Powder coated
Open Size: 700 x 770 x 1080 mm

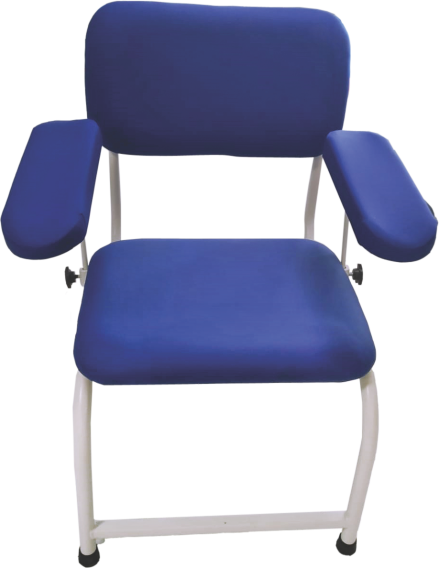

BLOOD SAMPLER CHAIR VDS-803
Description
Framework made of CRCA tube.
The back and seat padded with PU Foam covered from good quality leatherised Rexin cover.
Finish: Epoxy Powder coated
Size: Seat lenght 520L x 450W x Backrest Height 850 mm

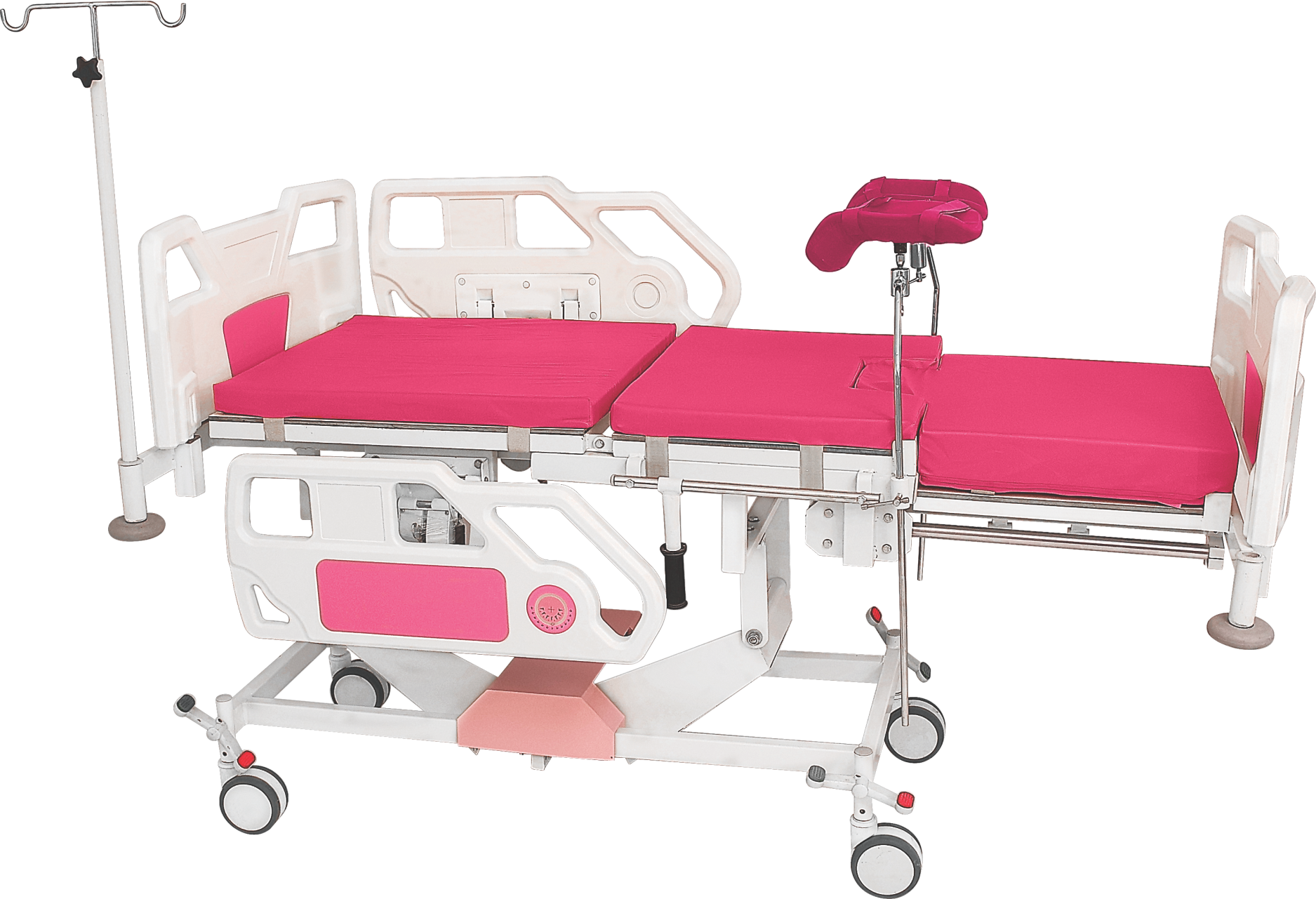

LDR BED (Electric) VDS-501
Description
Polymer Moulded Head and Foot Panels easily removable without using any tools with corner buffer
Polymer Moulded Two individual Side Rails With Inbuilt Bed Angle Indicator
Tubular framework mounted on 125mm (5”) Central locking castors.
Three-section top made of Bakelite sheet covered with 3 section Removable suitable Mattress.
Hi – Low, Trendelenburg & Reverse Trendelenburg operated by Hand Remote .
Leg section can smoothly slide under the main section.
1 Pair of lithotomy foam padded knee crutches.
S.S Telescopic Heavy duty Drip Rod.
Detachable S.S. Tray
Provided with adjustable S.S. Grip Handles on both sides.
Finish: Pretreated and epoxy powder coated
Dimensions (Approx.)
Overall Size: 2000L x 950W mm
Platform Size (full extended): 1900L x 660W
Platform Size (Leg section Slide under):1360L x 660W
Minimum Height (without Mattress): 680mm
Maximum Height (without Mattress): 960mm
Backrest angle: 60°
TB / RTB: 9° / 12°

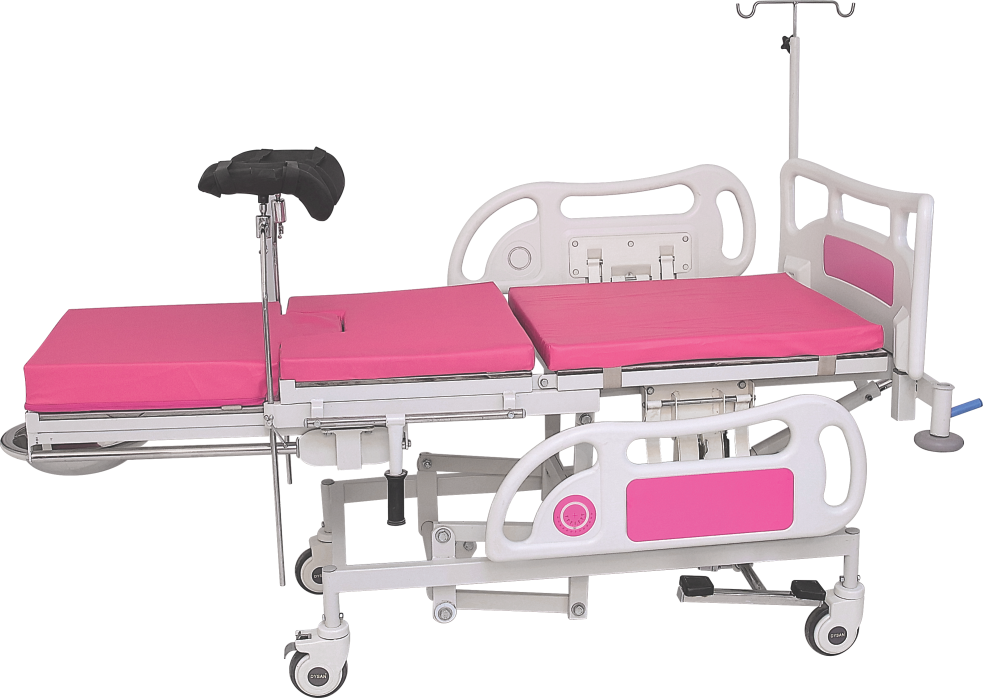

LDR BED (Hydraulic) VDS-502
Description
Polymer Moulded Head and Foot Panels easily removable without using any tools with corner buffer
Polymer Moulded Two individual Side Rails With Inbuilt Bed Angle Indicator
Tubular framework mounted on 125mm (5”) Central locking castors.
Three-section top made of Bakelite sheet covered with 3 section Removable suitable Mattress.
Hi–Low adjustable by Hydraulic System ( Foot paddle)
Trendelenburg & Reverse Trendelenburg operated by Smooth crank system.
Leg section can Smoothly slide under the main section.
1 Pair of lithotomy foam padded knee crutches.
S.S Telescopic Heavy duty Drip Rod.
Detachable S.S. waste collection Tray
Provided with adjustable S.S. Grip Handles on both sides.
Finish: Pretreated and epoxy powder coated.
Dimensions (Approx.)
Overall Size: 2000L x 950W mm
Platform Size (full extended): 1900L x 660W
Platform Size (Leg section Slide under): 360L x 660W
Minimum Height (without Mattress): 670mm
Maximum Height (without Mattress): 920mm

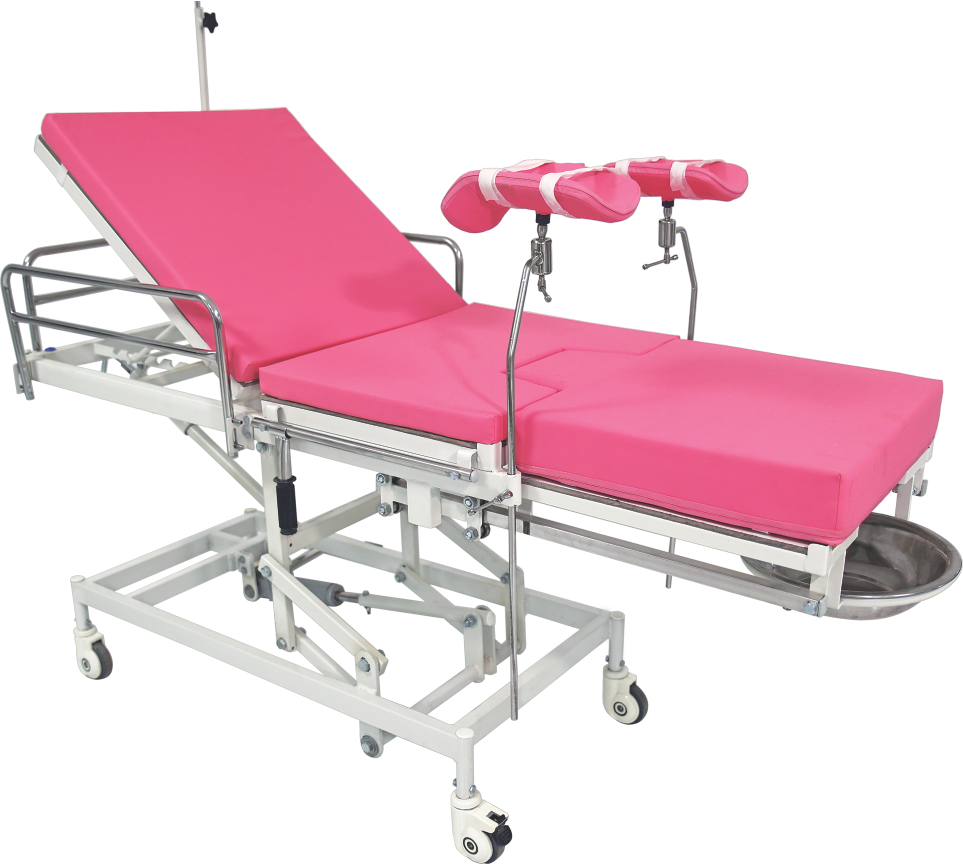

OBSTETRIC LABOUR TABLE (Adjustable Height) VDS-503
Description
Stainless steel Head Side Rail easily drop down without using any tools with
Stainless Steel Two drop down individual Side Rails
Tubular framework mounted on 125mm (5”) Central locking castors.
Three-section top made of Stainless Steel sheet covered with 3 section Removable Mattress.
Hi–Low adjustable by Hydraulic System ( Foot paddle)
Trendelenburg & Reverse Trendelenburg operated by Smooth crank system.
Leg section can Smoothly slide under the main section.
1 Pair of lithotomy foam padded knee crutches.
S.S Telescopic Heavy duty Drip Rod.
Detachable S.S. waste collection Tray
Provided with adjustable S.S. Grip Handles on both sides.
Finish: Stainless Steel Matte & Glossy.
Dimensions
Overall Size: 1900L x 900W mm
Platform Size (full extended): 1800L x 660W mm
Platform Size (Leg section Slide under): 1260L x 660W mm
Adjustable Height (without Mattress): 670-920 mm
Backrest angle: 50°
TB / RTB: 9° / 12°
Note : Also Available in Epoxy Powder Coated (M.S)

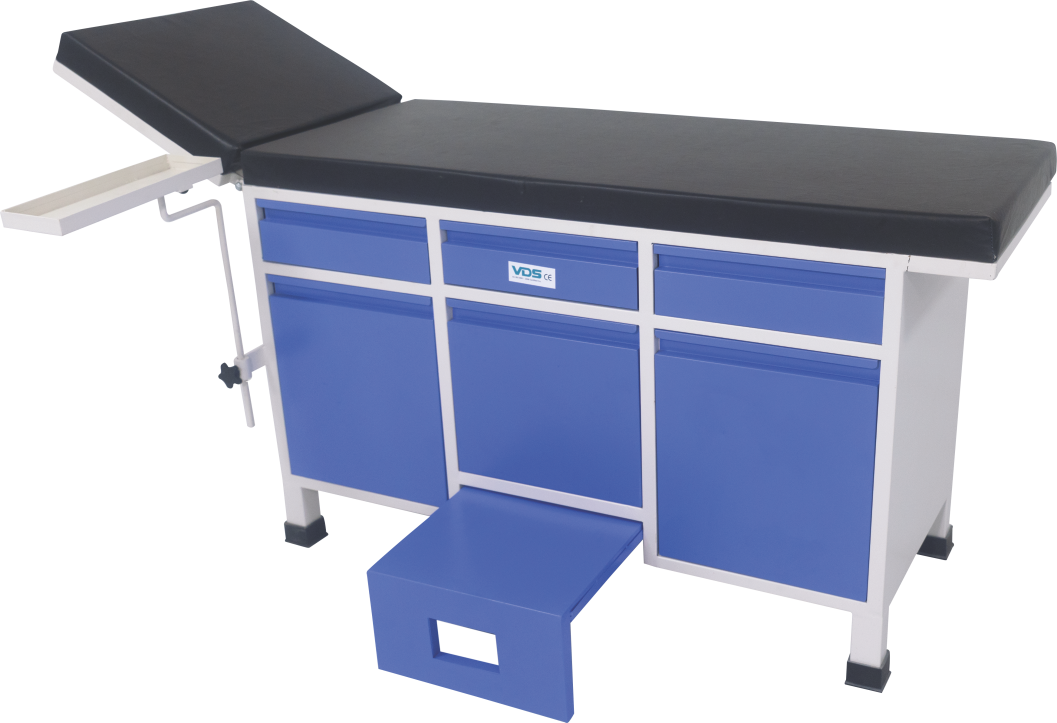

EXAMINATION COUCH (with Drawers & Cabinet) VDS-401
Description
Fixed 50mm Foam Mattress with cover top in two section
Body framework made up of CRCA sheet & mounted on CRCA leg covered with PU stumps/shoes.
Smooth Pneumatic mechanism to raise Headrest.
Provided 3 sliding drawers & 3 separate cabinet with doors.
B.P. apparatus tray on head side.
Sliding footstep located at bottom center.
Finish: Pre-treated & epoxy powder coated
Overall Size (Approx.): 1870L x 560W x 820H mm

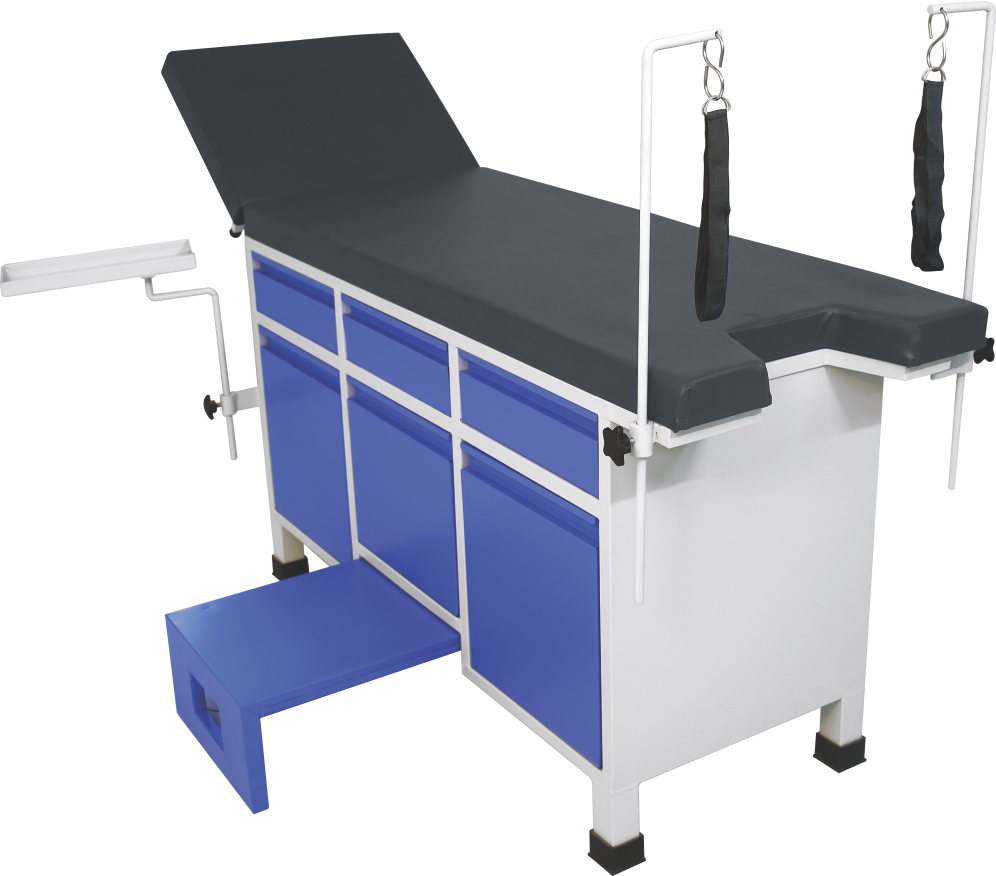

GYNAE EXAMINATION COUCH (with Drawers & Cabinet) VDS-402
Description
Fixed 50mm Foam Mattress with cover top in two section
Body framework made up of CRCA sheet & mounted on CRCA leg covered with PU stumps/shoes.
Smooth Pneumatic mechanism to raise Headrest.
Provided 3 sliding drawers & 3 separate cabinet with doors.
B.P. apparatus tray on head side.
Perineal Cut at foot side on the table & pair of lithotomy poles with straps
Sliding footstep located at bottom center.
Finish: Pre-treated & epoxy powder coated
Overall Size (Approx.): 1870L x 560W x 820H mm.

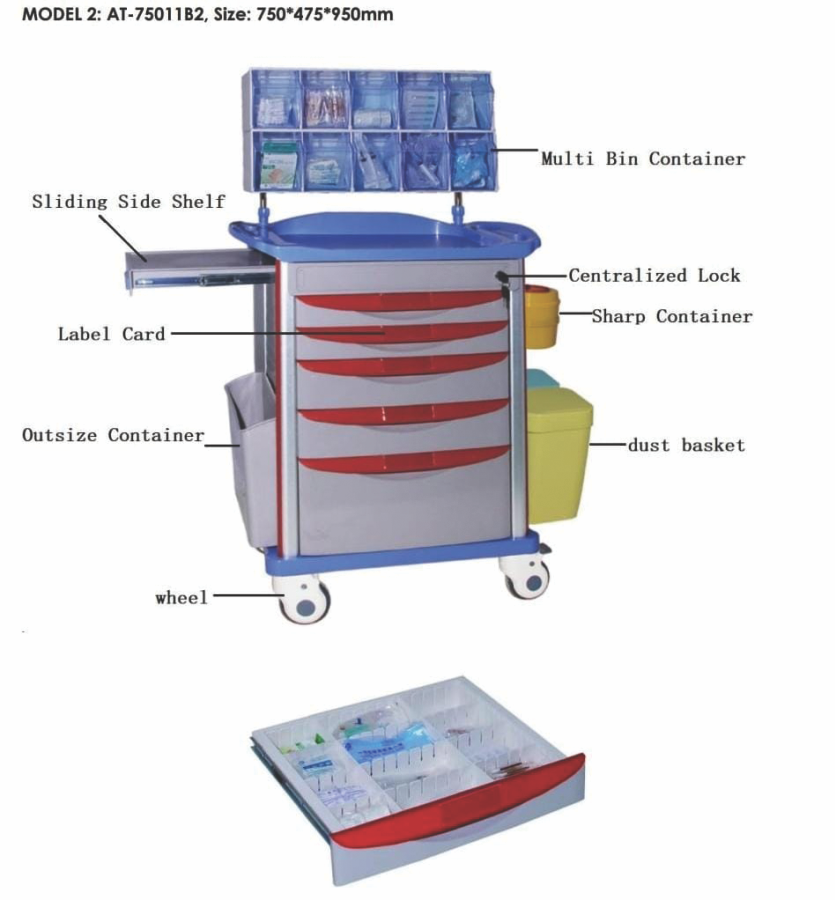

ABS CRASH CART TROLLEY VDS-601
Description
Framework & Drawers made of ABS body with aluminum columns.
Trolley having Utility Container, File Holder, Defibrillator Shelf, oxygen tank at rear, CPR board at rear & 3 side rail on top.
IV Rod with 4 hooks, Waste bin (2pcs), Needle disposal holder.
Trolley having Sliding Side Shelf for writing purpose.
Electric point with 2 socket backside with hook
Centralized locking system for 2 small & 3 big drawer
Provided with adjustable inner partitions.
125 mm Diagonal locking castors.
Overall Size (approx.): 750L x 475Wx 950H mm

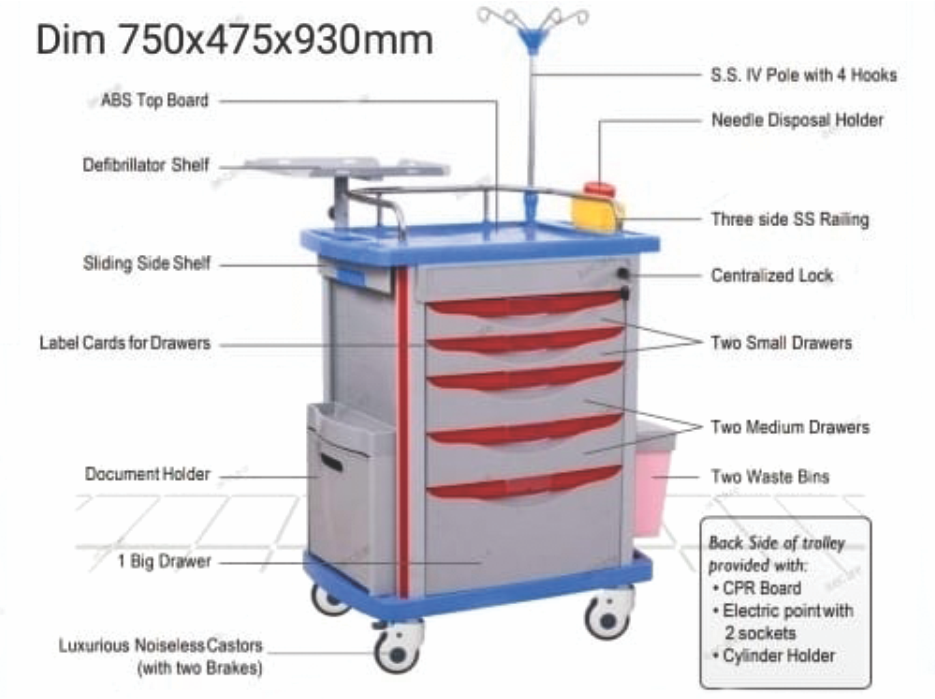

ABS CRASH CART TROLLEY VDS-602
Description
Framework & Drawer made of ABS body with aluminum columns.
Trolley having waste bin (2pcs), Sharp Container, File Holder, side rail on top & Sliding Side Shelf for writing purpose
Trolley having multi-bin containers on top for medicines & injections.
Centralized locking system for 2 small & 3 big drawer.
Provided with adjustable inner partitions.
125 mm Diagonal locking castors.
Overall Size (approx.): 750L x 475Wx 950H mm

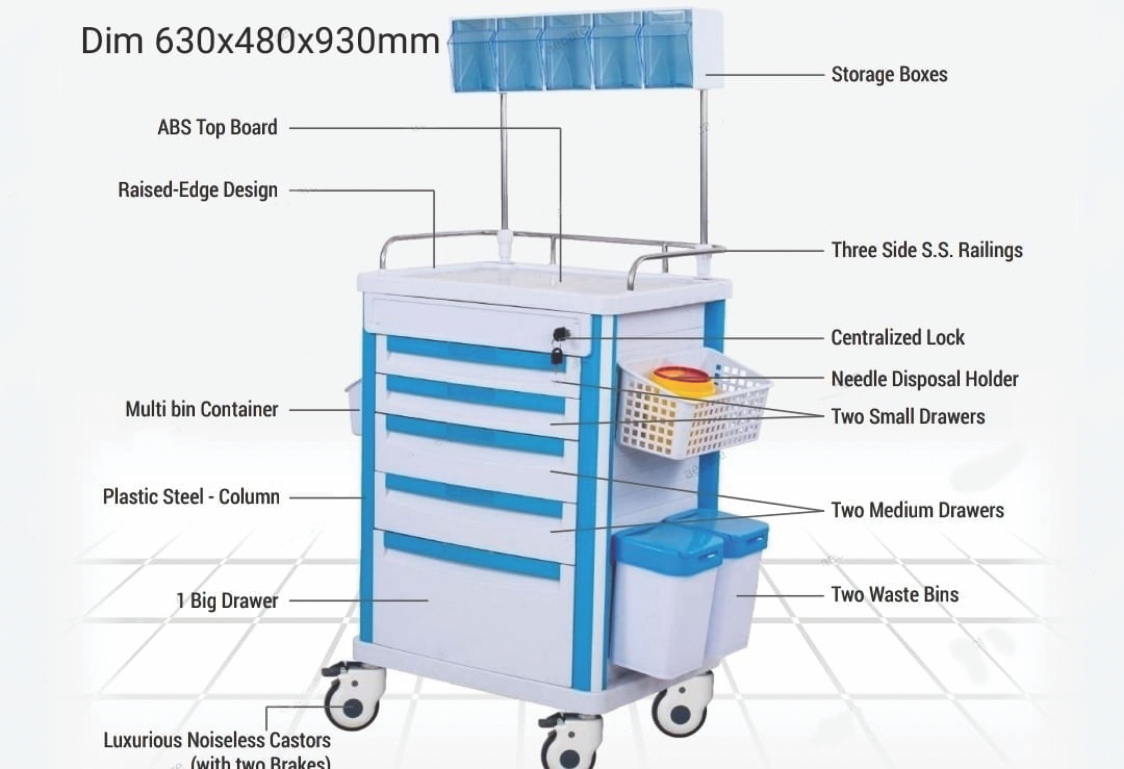

ABS CRASH CART TROLLEY VDS-603
ABS CRASH CART TROLLEY

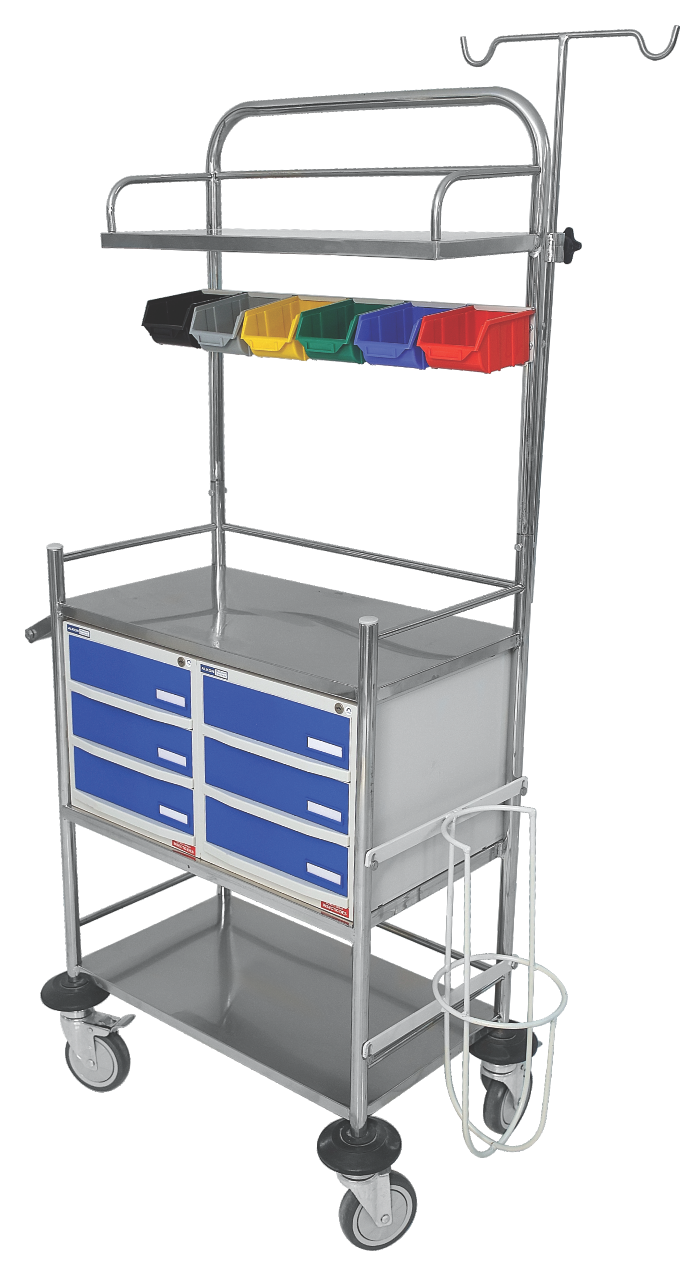

CRASH CART S.S VDS-604
Description
Framework made-up of Stainless Steel Tubes & Sheet.
Provided with polystyrene boxes each with Lockable three drawers
Provision of oxygen cylinder made of M.S.
Provided with Sliding Massage board & which can be used as CPR board for cardiac patient
Six colours removal Bins.
3 Stainless Steel Shelves for Different Uses.
Provided with I.V. Rod & Corner Buffers.
Cart mounted on 125 mm Diagonal locking castors.
Overall Size (Approx.): 960L x 500 W x 1545H mm

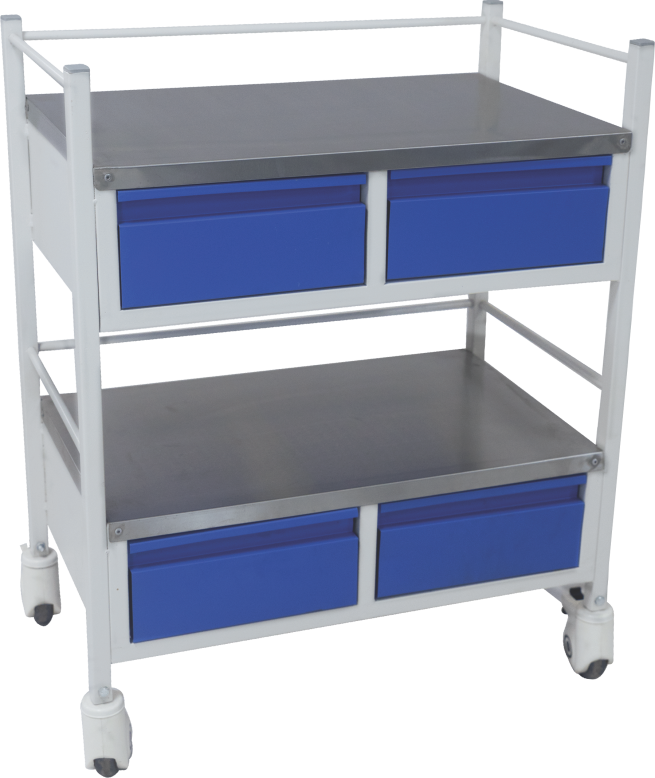

MEDICINE TROLLEY (with 4 drawers) VDS-605
Description
Framework made-up of CRCA tube mounted on 10 cm (4”) Diagonal Locking Castors.
Two S.S. shelves with three side railing on top &Lower shelf
Two M.S Drawer under the each shelf
Finish: Pretreated & Epoxy Powder Coated.
Overall Size (Approx.): 760L x 460W x 950H mm.

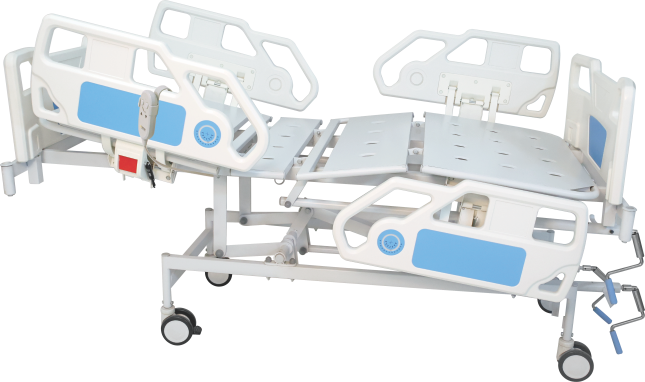

ICU BED SEMI MOTORISED VDS-105
Description
Backrest Operated by Hand Remote
Kneerest, Trendelenburg & Reverse Trendelenburg & Hi-Low operated by manual crank System.
Polymer Moulded Head and Foot Panels easily removable without using any tools with corner buffer
Polymer Moulded Four individual Side Rails with Angle Indicator
Framework made-up of CRCA Tubes.
4 Section Platform Top made-up of Perforated CRCA Sheet.
Bed Mounted on 125mm Diagonal locking Twin Wheel Castors
Heavy Duty I.V Rod and Provision at 4 Locations.
Urine Bag Holder on Both Sides.
Finish: Pre-treated & Epoxy Powder Coated.
Dimensions (Approx.)
Overall Size: 2270L x 1080W x 580 – 880H mm
Angle of Back Section: 75°
Angle of Knee Section: 35°
Angle of Trendelenburg / Reverse Trendelenburg: 12° / 12°
Optional Accessories

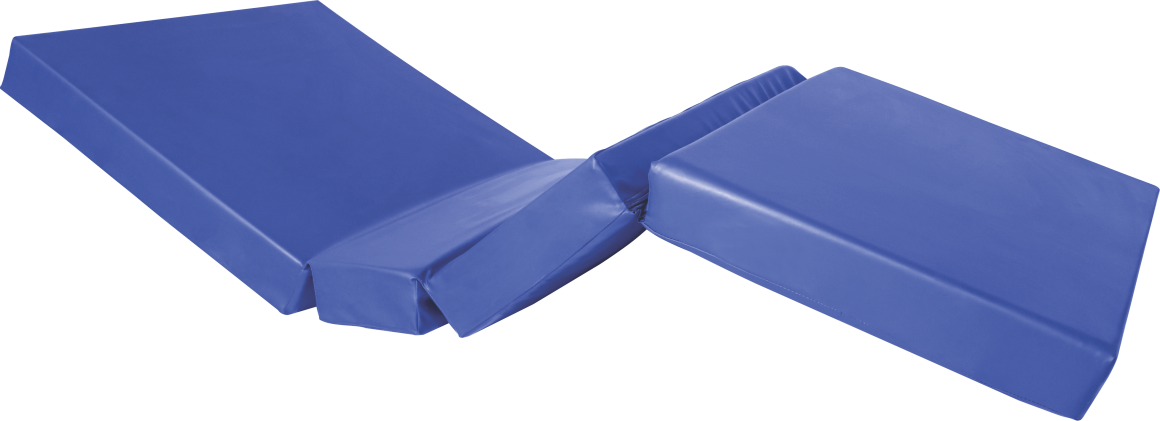

4 Section PU Foam Mattress with Zipper Rexine Cover
Central Locking Castors with direction Lock

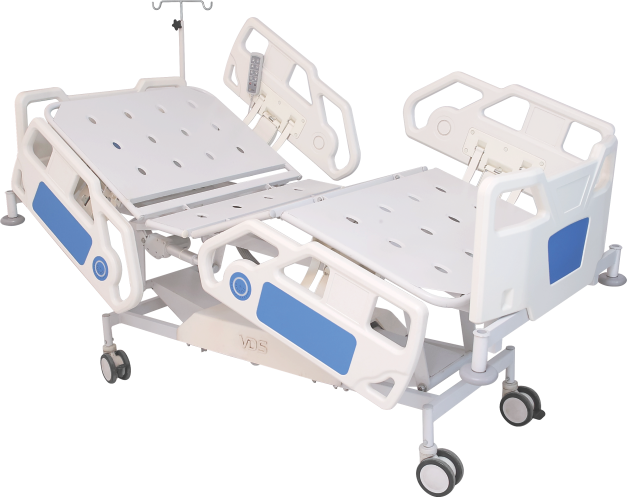

ICU BED MOTORISED (5 FUNCTIONS) VDS-106
Backrest, Kneerest, Trendelenburg, Reverse Trendelenburg & Hi-Low Operated By Hand Remote System.
Dual Side Manually Operated CPR (For Backrest).
Polymer Moulded Head and Foot Panels easily removable without using any tools with corner buffer
Polymer Moulded Four individual Side Rails With Inbuilt Bed Angle Indicator
Framework made-up of CRCA Tubes.
4 Section Platform Top made-up of Perforated CRCA Sheet.
Bed Mounted on ABS cover base 125mm Diagonal locking Twin Wheel Castors
Heavy Duty I.V Rod and Provision at 4 Locations.
Urine Bag Holder on Both Sides.
Finish: Pre-treated & Epoxy Powder Coated.
Dimensions (Approx.)
Overall Size: 2230L x 1050W x 450 – 750H mm
Angle of Back Section: 75°
Angle of Knee Section: 25°
Angle of Trendelenburg / Reverse Trendelenburg: 12° / 12°
Optional Accessories
4 Section PU Foam Mattress with Zipper Rexine Cover
Central Locking Castors with direction Lock.
Battery Backup
ABS Platform on top for bed.

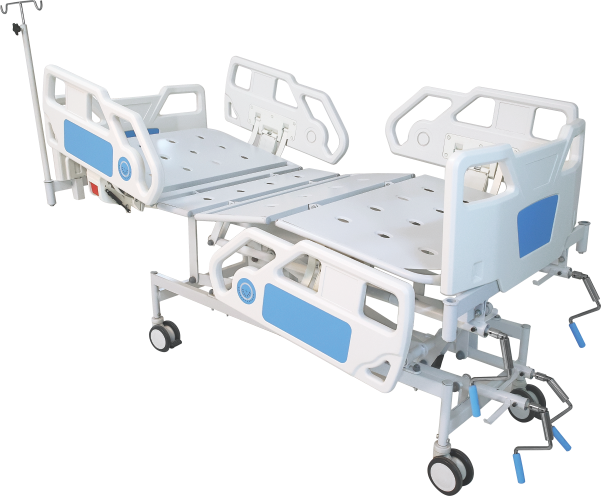

ICU BED MECHANICAL (5 FUNCTION) VDS-107
Description
Backrest Kneerest, Trendelenburg & Reverse Trendelenburg & Hi-Low operated by manual crank System.
Polymer Moulded Head and Foot Panels easily removable without using any tools with corner buffer
Polymer Moulded Four individual Side Rails with Angle Indicator
Framework made-up of CRCA Tubes.
4 Section Platform Top made-up of Perforated CRCA Sheet.
Bed Mounted on 125mm Diagonal locking Wheel Twin Castors
Heavy Duty I.V Rod and Provision at 4 Locations.
Urine Bag Holder on Both Sides.
Finish: Pre-treated & Epoxy Powder Coated.
Dimensions (Approx.)
Overall Size: 2270L x 1080W x 580 – 880H mm
Back Section: 0-75°
Knee Section: 0-35°
Trendelenburg / Reverse Trendelenburg: 12° / 12°
Optional Accessories
4 Section PU Foam Mattress with Zipper Rexine Cover
Central Locking Castors with direction Lock.

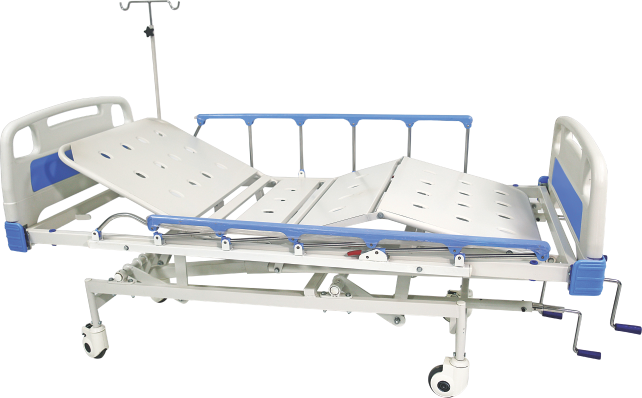

ICU BED MECHANICAL (ABS Panel &Collapsiable Railing) VDS-108
Description
Backrest Kneerest, Trendelenburg & Reverse Trendelenburg & Hi-Low operated by manual crank System.
Polymer Moulded Head and Foot Panels easily removable without using any tools with corner buffer Collapsible Safety Side Railing.
Framework made-up of CRCA Tubes.
4 Section Platform Top made-up of Perforated CRCA Sheet.
Bed Mounted on 125mm Diagonal locking Twin Wheel Castors
Heavy Duty I.V Rod and Provision at 4 Locations.
Urine Bag Holder on Both Sides.
Finish: Pre-treated & Epoxy Powder Coated.
Dimensions (Approx.)
Overall Size: 2120L x 980W x 580 – 880H mm
Back Section: 0-75°
Knee Section: 0-35°
Trendelenburg / Reverse Trendelenburg: 12° / 12°
Optional Accessories
4 Section PU Foam Mattress with Zipper Rexine Cover
Central Locking Castors with direction Lock.

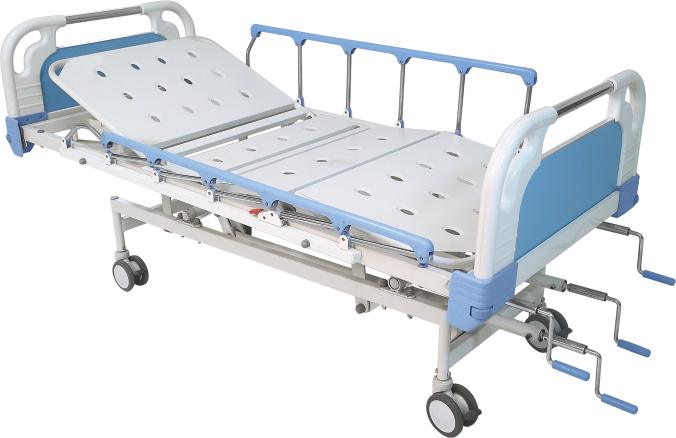

ICU BED MECHANICAL (DELUXE) VDS-109
Description
Backrest Kneerest, Trendelenburg & Reverse Trendelenburg & Hi-Low operated by manual crank System.
Detachable heavy ABS Head and Foot Panels easily removable without using any tools with corner buffer.
Collapsible Safety Side Railing.
Framework made-up of CRCA Tubes.
4 Section Platform Top made-up of Perforated CRCA Sheet.
Bed Mounted on 125mm Diagonal locking Twin Wheel Castors
Heavy Duty I.V Rod and Provision at 4 Locations.
Urine Bag Holder on Both Sides.
Finish: Pre-treated & Epoxy Powder Coated.
Dimensions (Approx.)
Overall Size: 2120L x 980W x 580 – 880H mm
Back Section: 0-75°
Knee Section: 0-35°
Trendelenburg / Reverse Trendelenburg: 12° / 12°
Optional Accessories
4 Section PU Foam Mattress with Zipper Rexine Cover
Central Locking Castors with direction Lock

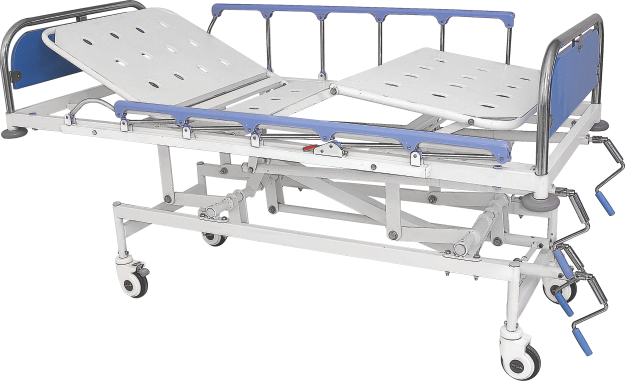

ICU BED MECHANICAL (Standard SS Panel) VDS-110
Description
Backrest Kneerest, Trendelenburg & Reverse Trendelenburg & Hi-Low operated by manual crank System.
Detachable SS Head and Foot Panels with easily removable without using any tools with corner buffer.
Collapsible Safety Side Railing.
Framework made-up of CRCA Tubes.
4 Section Platform Top made-up of Perforated CRCA Sheet.
Bed Mounted on 125mm Diagonal locking Twin Wheel Castors
Heavy Duty I.V Rod and Provision at 4 Locations.
Urine Bag Holder on Both Sides.
Finish: Pre-treated & Epoxy Powder Coated.
Dimensions (Approx.)
Overall Size: 2120L x 980W x 580 – 880H mm
Back Section: 0-75°
Knee Section: 0-35°
Trendelenburg / Reverse Trendelenburg: 12° / 12°
Optional Accessories
4 Section PU Foam Mattress with Zipper Rexine Cover
Central Locking Castors with direction Lock

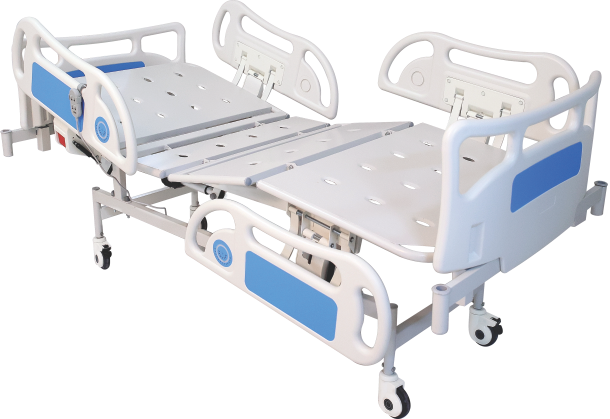

FOWLER BED MOTORISED (ABS Panel & Railing) VDS-111
Description
Backrest, Kneerest, operated by Remote Control System.
Polymer Moulded Head and Foot Panels easily removable without using any tools
Polymer Moulded Four Pieces individual Side Rails With Inbuilt Angle Indicator.
Framework made-up of CRCA Tubes.
4 Section Platform Top made-up of Perforated CRCA Sheet.
Bed Mounted on trolley type base with 125mm Diagonal Locking Castors.
Provision for IV Rod at 4 Locations.
Urine Bag Holder on Both Sides.
Finish: Pre-treated & Epoxy Powder Coated.
Dimensions (Approx.)
Overall Size: 2200L x 1080W x 600H mm.
Angle of Back Section: 75°
Angle of Knee Section: 35°
Optional Accessories
4 Section PU Foam Mattress with Zipper Rexine Cover
Heavy Duty I.V Rod.
Also available Collapsible Railling
FOWLER BED MECHANICAL (2 Function.) ABS Panel & Railing VDS-112
Description
Backrest, Kneerest, operated by Manual Crank System .
Polymer Moulded Head and Foot Panels easily removable without using any tools
Polymer Moulded Four Pieces individual Side Rails With Inbuilt Angle Indicator.
Framework made-up of CRCA Tubes.
4 Section Platform Top made-up of Perforated CRCA Sheet.
Bed Mounted on trolley type base with 125mm Diagonal Locking Castors.
Provision for IV Rod at 4 Locations.
Urine Bag Holder on Both Sides.
Finish: Pre-treated & Epoxy Powder Coated.
Dimensions (Approx.)
Overall Size: 2270L x 1080W x 600H mm.
Angle of Back Section: 75°
Angle of Knee Section: 35°
Optional Accessories
4 Section PU Foam Mattress with Zipper Rexine Cover
Heavy Duty I.V Rod.

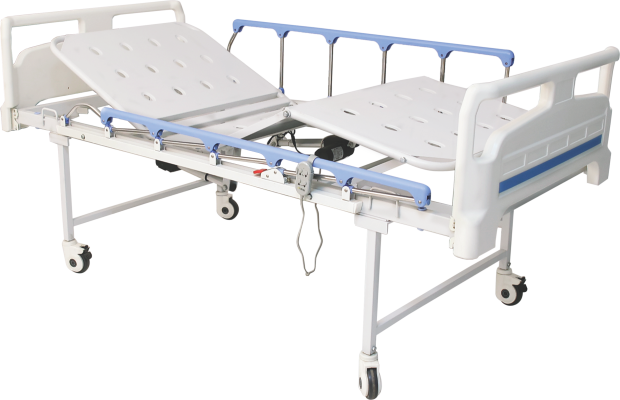

FOWLER BED ELECTRICAL (ABS Panel & Collapsible Railing) VDS-113
Description
Backrest, Kneerest, operated by Remote Control System.
Polymer Moulded Head and Foot Panels easily removable without using any tools
Polymer Moulded Four Pieces individual Side Rails With Inbuilt Angle Indicator.
Framework made-up of CRCA Tubes.
4 Section Platform Top made-up of Perforated CRCA Sheet.
Bed Mounted on trolley type base with 125mm Diagonal Locking Castors.
Provision for IV Rod at 4 Locations.
Urine Bag Holder on Both Sides.
Finish: Pre-treated & Epoxy Powder Coated.
Dimensions (Approx.)
Overall Size: 2200L x 1080W x 600H mm.
Angle of Back Section: 75°
Angle of Knee Section: 35°
Optional Accessories
4 Section PU Foam Mattress with Zipper Rexine Cover
Heavy Duty I.V Rod.
Also available in Mechanical

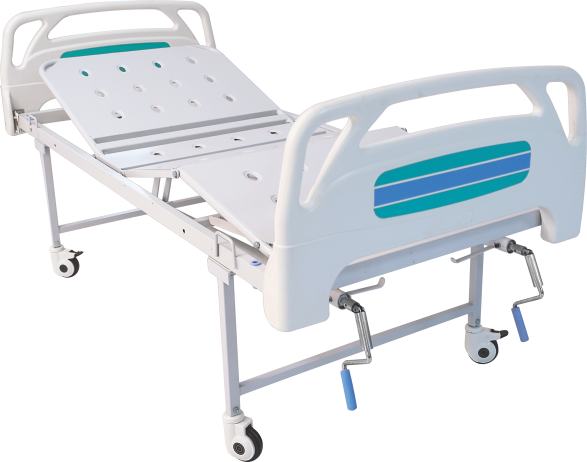

FOWLER BED MECHANICAL (ABS Panel) VDS-114
Description
Backrest, Kneerest, Leg rest operated by Manual Crank System .
Polymer Moulded Head and Foot Panels easily removable without using any tools
Framework made-up of CRCA Tubes.
4 Section Platform Top made-up of Perforated CRCA Sheet.
Bed Mounted on 100mm Diagonal Locking Castors.
Provision for IV Rod at 4 Locations.
Urine Bag Holder on Both Sides.
Finish: Pre-treated & Epoxy Powder Coated.
Dimensions (Approx.)
Overall Size: 2130L x 980 x 600H mm.
Angle of Back Section: 75°
Angle of Knee Section: 35°
Optional Accessories
4 Section Foam Mattress with Zipper Rexine Cover.
Heavy Duty I.V Rod.
Collapsible Safety Side-Rails.

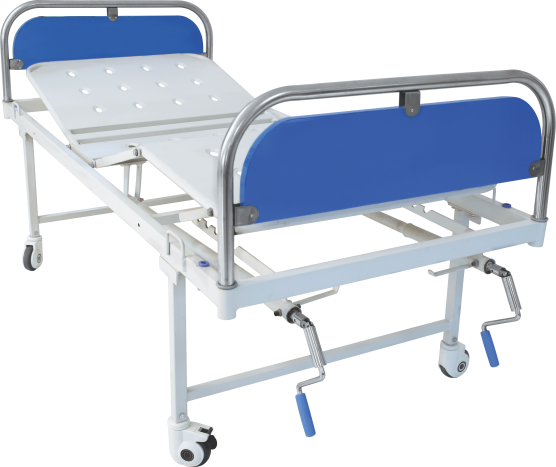

FOWLER BED MECHANICAL (S.S Panel) VDS-115
Description
Backrest, Kneerest, Legrest operated by Manual Crank System.
Detachable S.S with laminated Head and Foot Panels.
Framework made-up of CRCA Tubes.
4 Section Platform Top made-up of Perforated CRCA Sheet.
Bed Mounted on 100mm Diagonal Locking Castors.
Provision for IV Rod at 4 Locations.
Urine Bag Holder on Both Sides.
Finish: Pre-treated & Epoxy Powder Coated.
Dimensions (Approx.)
Overall Size: 2070L x 920W x 600H mm.
Angle of Back Section: 75°
Angle of Knee Section: 35°
Optional Accessories
4 Section PU Foam Mattress with Zipper Rexine Cover
Heavy Duty I.V Rod.
Collapsible Safety Side-Rails.

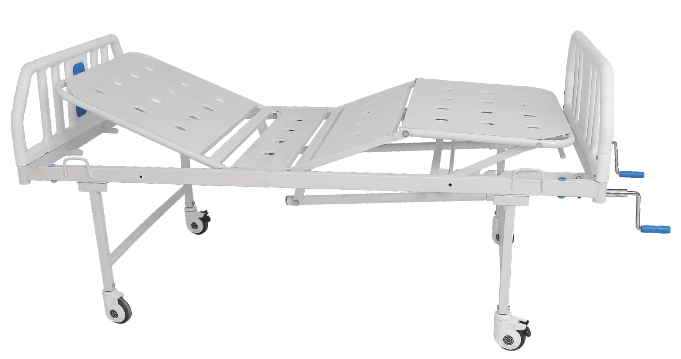

FOWLER BED MECHANICAL (Std.) VDS-116
Description
Backrest, Kneerest, Legrest operated by Manual Crank System.
Detachable Polymer Head and Foot Portable Panels.
Framework made-up of CRCA Tubes.
4 Section Platform Top made-up of Perforated CRCA Sheet.
Bed Mounted on 100mm Diagonal Locking Castors.
Provision for IV Rod at 4 Locations.
Urine Bag Holder on Both Sides.
Finish: Pre-treated & Epoxy Powder Coated.
Dimensions (Approx.)
Overall Size: 2070L x 920W x 600H mm.
Angle of Back Section: 75°
Angle of Knee Section: 35°
Optional Accessories
4 Section PU Foam Mattress with Zipper Rexine Cover
Heavy Duty I.V Rod.
Collapsible Safety Side-Rails.

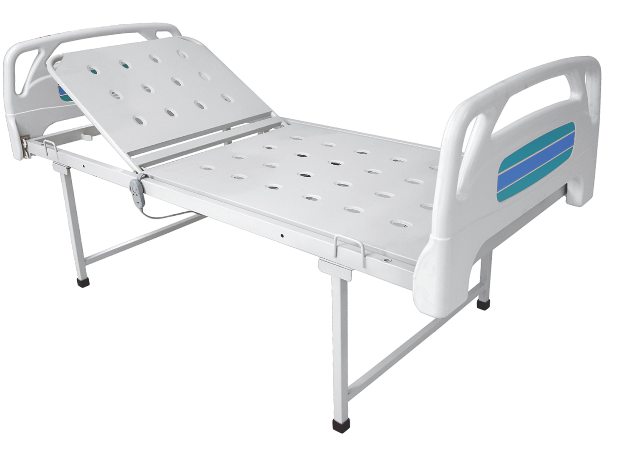

SEMI-FOWLER BED MOTORISED VDS-117
Description
Backrest, operated by Hand Remote System .
Polymer Moulded Head and Foot Panels easily removable without using any tools
Framework made-up of CRCA Tubes.
2 Section Platform Top made-up of Perforated CRCA Sheet.
Bed Mounted on PVC Stumps/ Shoes.
Provision for IV Rod at 4 Locations.
Urine Bag Holder on Both Sides.
Finish: Pre-treated & Epoxy Powder Coated.
Dimensions (Approx.)
Overall Size: 2110L x 980W x 600H mm.
Angle of Back Section: 85°
Optional Accessories
2 Section PU Foam Mattress with Zipper Rexine Cover
Heavy Duty I.V Rod.
Collapsible Safety Side-Rails
100mm Diagonal locking Castors

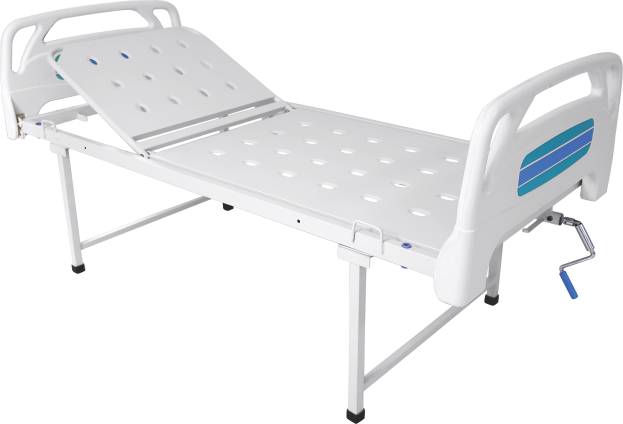

SEMI-FOWLER BED MECHANICAL (ABS Panel) VDS-118
Description
Polymer Moulded Head and Foot Panels easily removable without using any tools
Framework made-up of CRCA Tubes.
2 Section Platform Top made-up of Perforated CRCA Sheet.
Bed Mounted on PVC Stumps/ Shoes.
Provision for IV Rod at 4 Locations.
Urine Bag Holder on Both Sides.
Backrest operated by Smooth Crank System with Foldable Handle.
Finish: Pre-treated & Epoxy Powder Coated.
Dimensions (Approx.)
Overall Size: 2130L x 980W x 600H mm.
Angle of Back Section: 85°
Optional Accessories
2 Section PU Foam Mattress with Zipper Rexine Cover
Heavy Duty I.V Rod.
Collapsible Safety Side-Rails.
100mm Diagonal locking Castors.

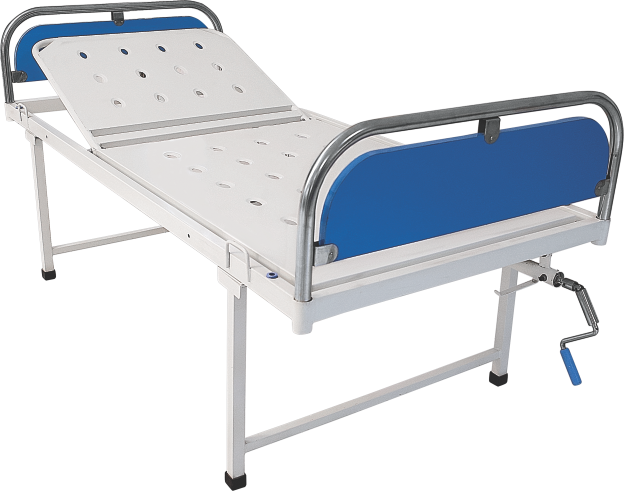

SEMI-FOWLER BED MECHANICAL (SS Panel) VDS-119
Description
Detachable S.S with laminated Head and Foot Panels easily removable.
Framework made-up of CRCA Tubes.
2 Section Platform Top made-up of Perforated CRCA Sheet.
Bed Mounted on PVC Stumps/ Shoes.
Provision for IV Rod at 4 Locations.
Urine Bag Holder on Both Sides.
Backrest operated by Smooth Crank System with Foldable Handle.
Finish: Pre-treated & Epoxy Powder Coated.
Dimensions (Approx.)
Overall Size: 2070L x 920W x 600H mm.
Angle of Back Section: 85°
Optional Accessories
2 Section PU Foam Mattress with Zipper Rexine Cover
Heavy Duty I.V Rod.
Collapsible Safety Side-Rails.
100mm Diagonal locking Castors.

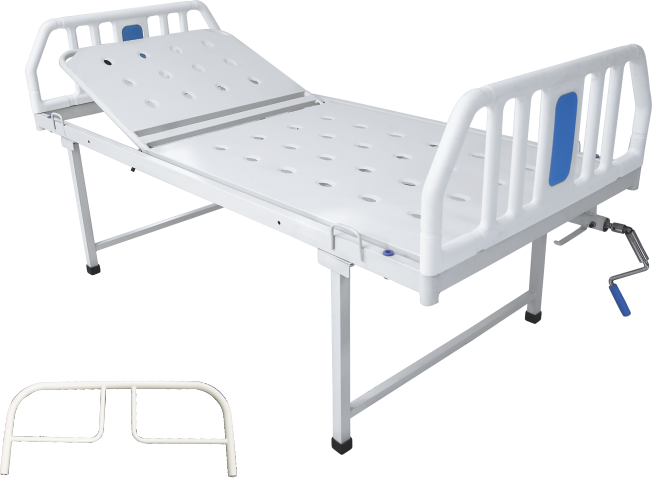

SEMI-FOWLER BED MECHANICAL (STD.) VDS-120
Description
Polymer Easily Detachable Head and Foot Portable Panels.
Framework made-up of CRCA Tubes.
2 Section Platform Top made-up of Oval Perforated CRCA. Sheet.
Bed Mounted on PVC Stumps/ Shoes.
Provision for IV Rod at 4 Locations.
Urine Bag Holder on Both Sides.
Backrest operated by Smooth Crank System with Foldable Handle.
Finish: Pre-treated & Epoxy Powder Coated.
Dimensions (Approx.)
Overall Size: 2070L x 920W x 600H mm.
Angle of Back Section: 85°
Optional Accessories
2 Section PU Foam Mattress with Zipper Rexine Cover
Heavy Duty I.V Rod.
Collapsible Safety Side-Rails.
100mm Diagonal locking Castors.
Plain Bed (Std.) VDS-121
Description
CRCA Easily Detachable Head and Foot Panels.
Single Platform Top made-up of Perforated CRCA Sheet .
Bed Top made-up of single platform Perforated CRCA Sheet.
Framework made-up of CRCA Tubes.
Bed Mounted on PU Heavy Stumps/ Shoes.
Provision for IV Rod at 4 Locations.
Urine Bag Holder on Both Sides.
Finish: Pre-treated & Epoxy Powder Coated.
Dimensions (Approx.)
Overall Approx. Size: 2010L x 920W x 600H MM
Optional Accessories
Single Section PU Foam Mattress with Zipper Rexine Cover
Heavy Duty I.V Rod.
Swing away Safety Side-Rails.
100mm Diagonal locking Castors

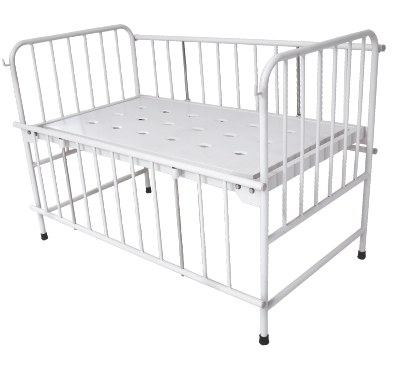

PEDIATRIC BED (STD.) VDS-122
Description
Bed Top made-up of single platform Perforated CRCA Sheet.
Framework made-up of CRCA rectuangler Tubes.
Bed Mounted on PU Heavy Stumps/ Shoes.
Provision for IV Rod at 4 Locations.
Full Length Swing Down Safety Side Rails both Sides.
Finish: Pre-treated & Epoxy Powder Coated.
Dimensions (Approx.)
Overall Size: 1485L x 860W x 600H mm
Optional Accessories
Single Section PU Foam Mattress with Zipper Rexine Cover
Heavy Duty I.V Rod.
100mm Diagonal locking Castors

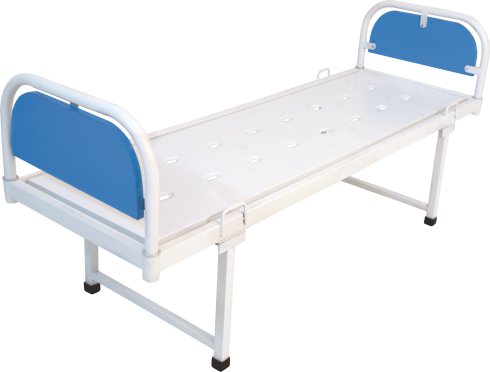

ATTENDANT BED VDS-123
Description
Framework made of Rectangular / Square M.S. Tube.
50 mm (2”) Foam Padded Fixed Mattress Covered with Good Quality Rexine.
Legs fitted with PU Heavy stumps / Shoes.
Finish: Pretreated & Epoxy Powder Coated.
Overall Size: 1840L x 620W x 490H MM

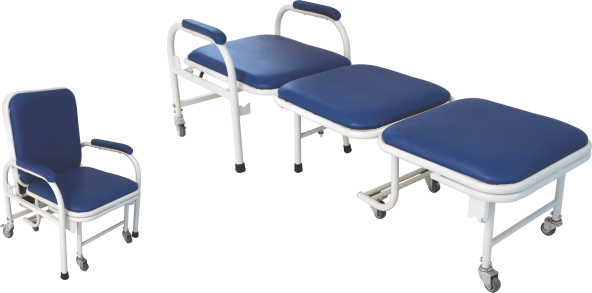

ATTENDANT BED CUM CHAIR VDS-124
Feature and Benefits
Frame is made of CRCA tubular pipe mounted on PVC stumps.
Padded with good quality matteress.
Metal body is pretreated and epoxy powder coated.
dimension is 1900 * 620 * 580 mm.
OVER BED TABLE (KNOB) VDS-207
Description
Wooden laminated Top with CRCA Heavy quality frame.
CRCA Square Pipe telescopic section fitted with knob for height adjustment.
M.S Heavy base for better stability.
Mounted on 50 mm wheels.
Finish: Pretreated & Epoxy Powder Coated.
Overall Size: 1000L x 435W x 825 – 1180H mm
Top Size: 880L X 435W X 28H mm
OVER BED TABLE (FIXED) VDS-208
Description
Wooden laminated Top with CRCA Heavy frame.
Framework made of CRCA tubular Mounted on 50 mm wheels.
Finish: Pretreated & Epoxy Powder Coated.
Overall Size: 1060L x 435W x 1060H mm.
Top Size: 880L X 435W X 28H mm

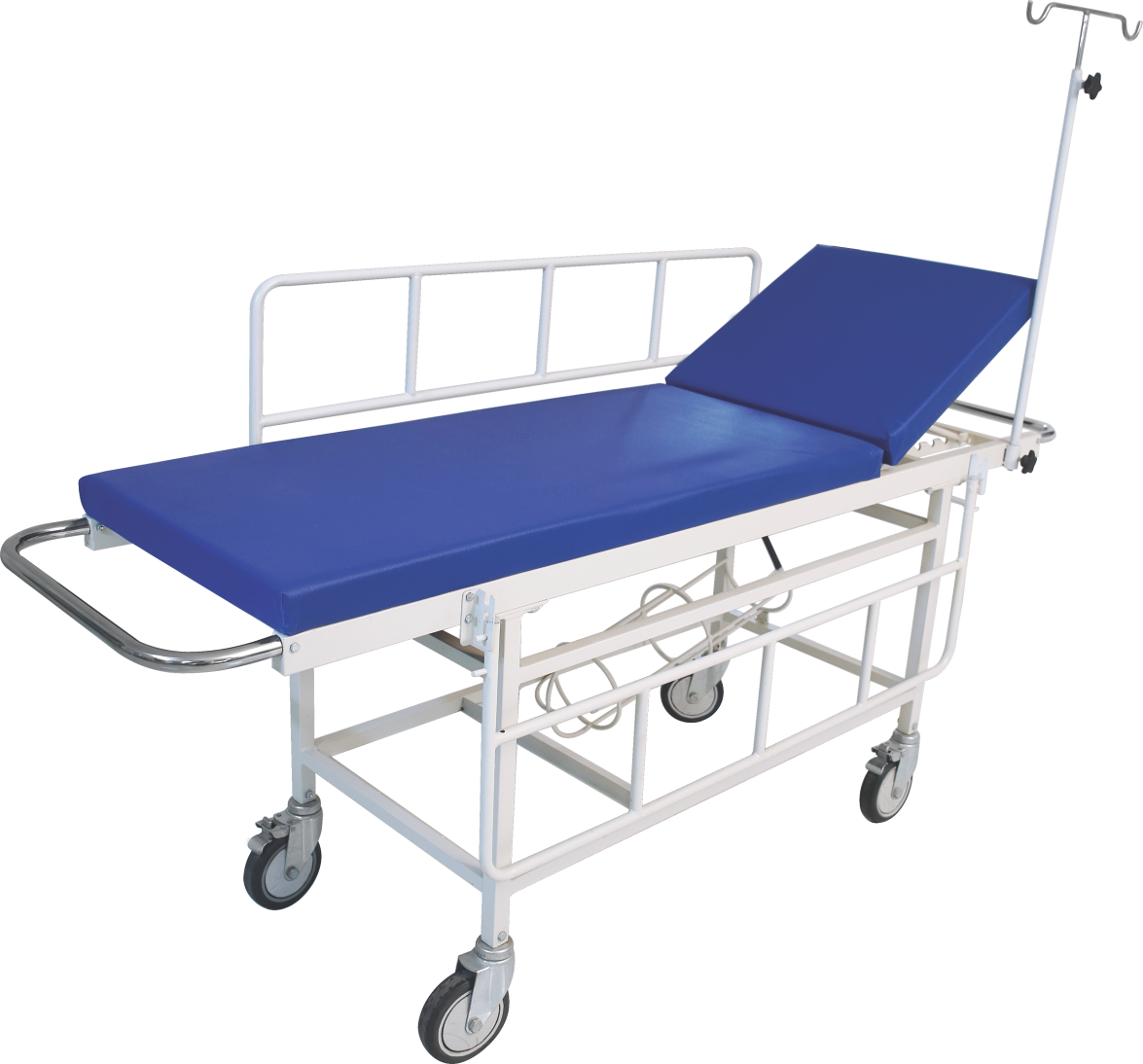

STRETCHER TROLLEY 2 Section VDS-303
Description
Framework made of Tubular CRCA Pipe with S.S. handle.
2 Section Platform Top with Fixed 50mm Mattress.
Trolley mount on 150 mm diagonal Locking castors.
Swing Away Type Safety Side Railing in M.S.
Provided with Adjustable S.S. I.V. Rod, Utility Tray, and Cylinder Cage.
Finish: Pretreated and Epoxy powder coated.
Stretcher Top Size (Handle to handle) : 2090L x 560W
Overall Size: 2090L x 590W x 840H mm.

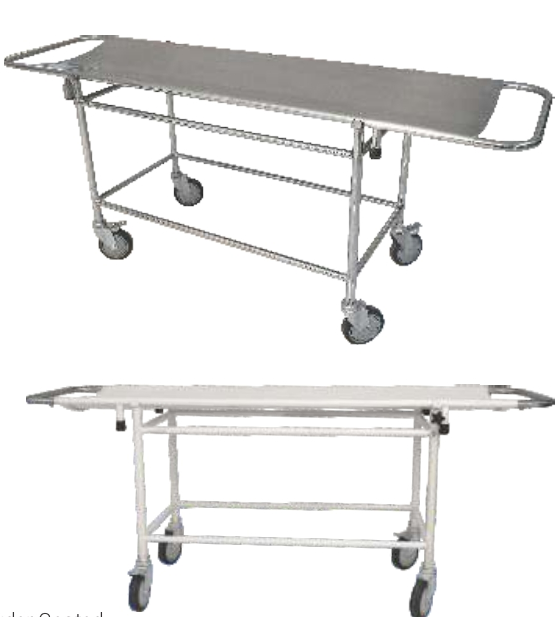

STRETCHER ON TROLLEY (STD.) VDS-304
Description
Removable Stretcher top on CRCA, ERW tubular Steel trolley mounted on 150mm Diagonal Locking Castors.
Framework made of Stainless steel pipe and Sheet.
Trolley overall Size (Handle to handle) : 2100L x 560W x 810H mm.
Optional Accessories
S.S. Telescopic Heavy Duty I.V. Rod with
Safety Side-Rails, Swing Away
Mattress 50mm with good quality raxine cover.
Note : Also available in epoxy powder coated.

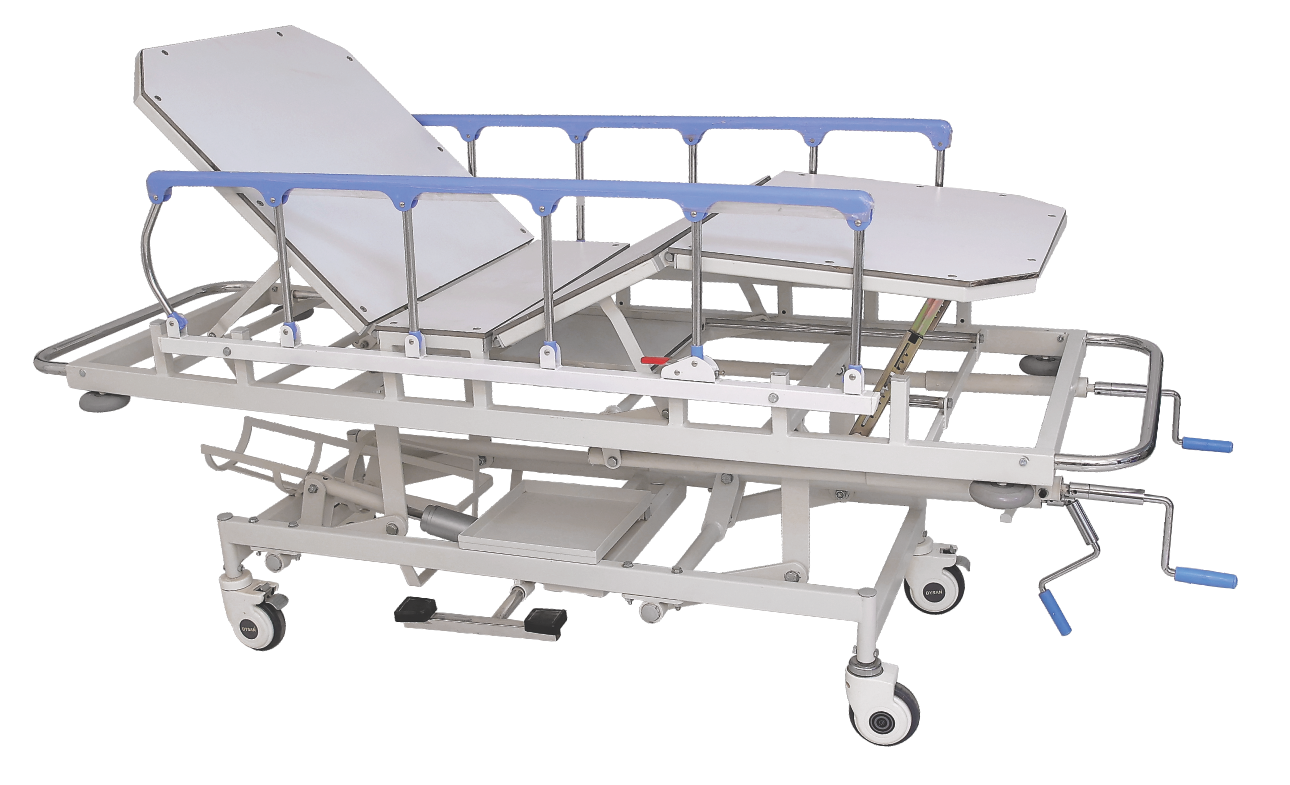

EMERGENCY RECOVERY TROLLEY DELUXE (4 SECTION TOP) VDS-305
Description
Frame made of rectangular CRCA pipe with collapsible side railing
Removable radiolucent top with X-Ray cassette holder
Four section top with back rest and manual maneuver for Knee rest via crank
Trendlenburg/Reverse Trendlenburg position maneuverable using crank mechanism
High-Low maneuverable by hydraulic pump
Castors of 125mm dia with diagonal locking are provided for mobility with control.
SS IV stand.
The complete metal components are pre treated and epoxy powder coated
Frame size : 2050L x 760W x 650-900H mm

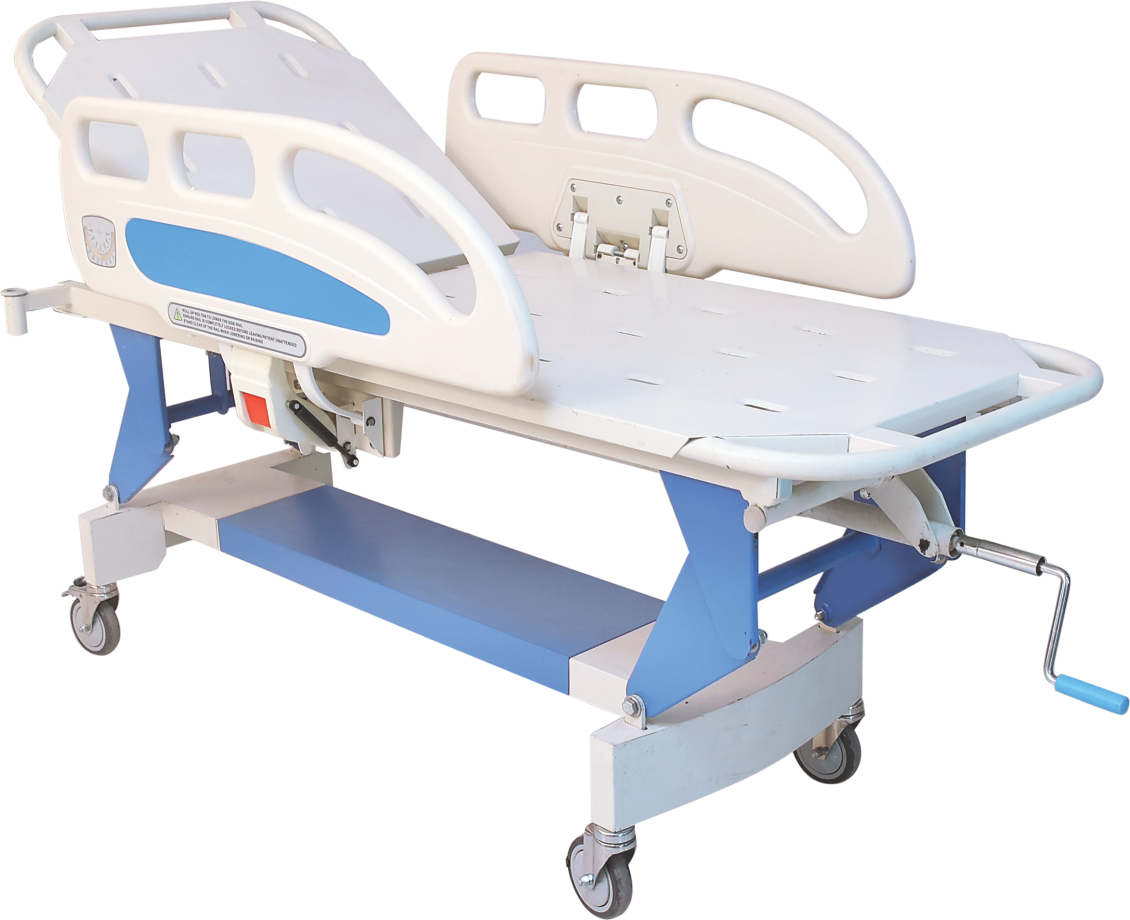

STRETCHER ON TROLLEY (ABS RAILING) VDS-306
Frame is made of CRCA Sheet & Pipes.
Trolley is mounted over 125 mm diagonally locking castor wheels.
Provision for saline stand.
Provided with swing down polymer moulded safety side rails.
Backrest cna be adjusted via gas spring up to 650
High-Low can be adjucted via crank mechanism
Dimension : 2050x760 x 560-800 mm
the complete metal component is pre treated and epoxy powder coated.

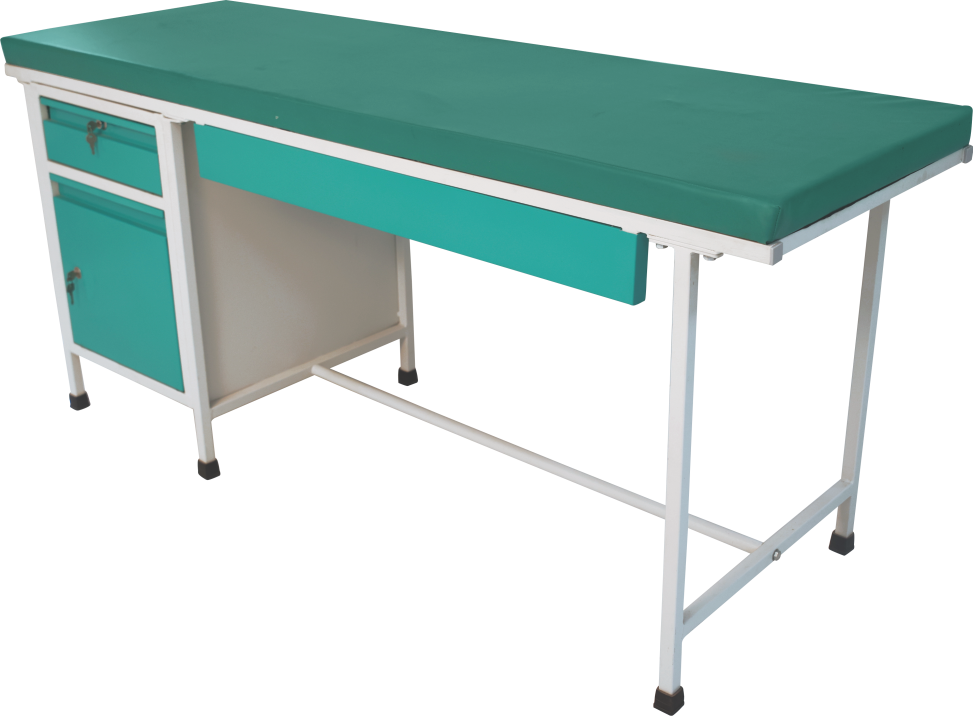

EXAMINATION COUCH (PLAIN) VDS-403
Description
Fixed 50mm Foam Mattress with cover top in single section.
Framework made of CRCA tubes mounted on PU stumps/shoes.
One cabinet with one drawer.
Finish: Pre-treated & epoxy powder coated
Overall Approx. Size: 1830L x610W x 810H mm

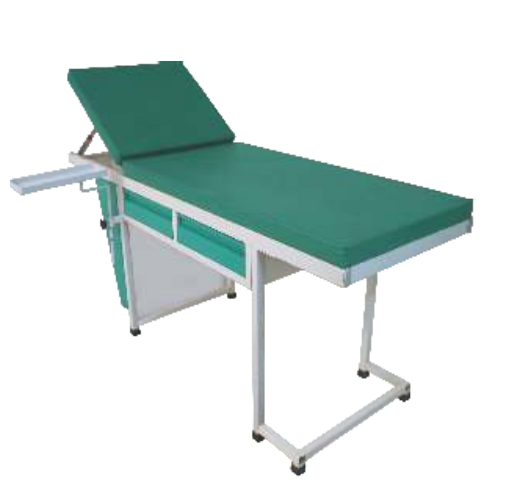

EXAMINATION TABLE DELUXE(2 Section) VDS-404
Description
Fixed 50mm Foam Mattress with cover top in two section with two drawers.
Framework made of CRCA tubes mounted on PU stumps/shoes.
Back rest adjustable by ratchet.
BP apparatus tray
Finish: Pre-treated & epoxy powder coated
Overall Approx. Size: 1830L x610W x 810H mm

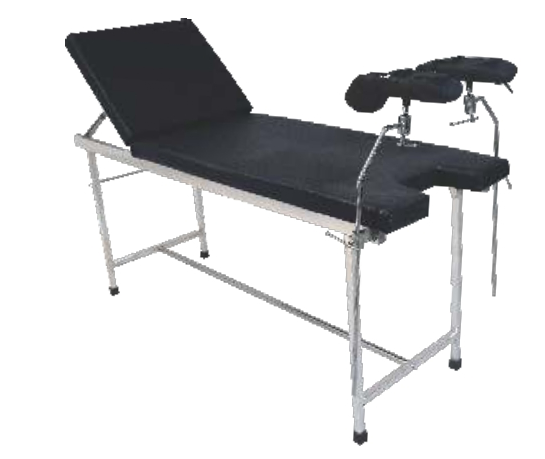

GYNAE EXAMINATION TABLE SS(COUCH) Two Section VDS-405
Description
Fixed 50mm Foam Mattress with cover top in two section
Framework made of Stainless Steel tubes mounted on PU stumps/shoes.
Back rest adjustable by ratchet & Perineal Cut at footside with pair of lithotomy poles with straps
Overall Approx. Size: 1830L x560W x 810H mm

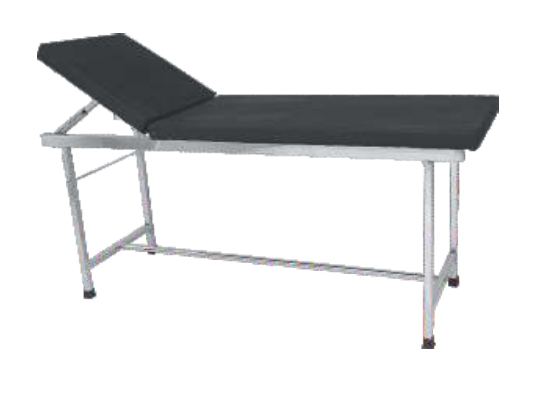

EXAMINATION TABLE SS (COUCH) Two Section VDS-406
Description
Fixed 50mm Foam Mattress with cover top in two section
Framework made of Stainless Steel tubes mounted on PU stumps/shoes.
Back rest adjustable by ratchet
Overall Approx. Size: 1830L x560W x 810H mm

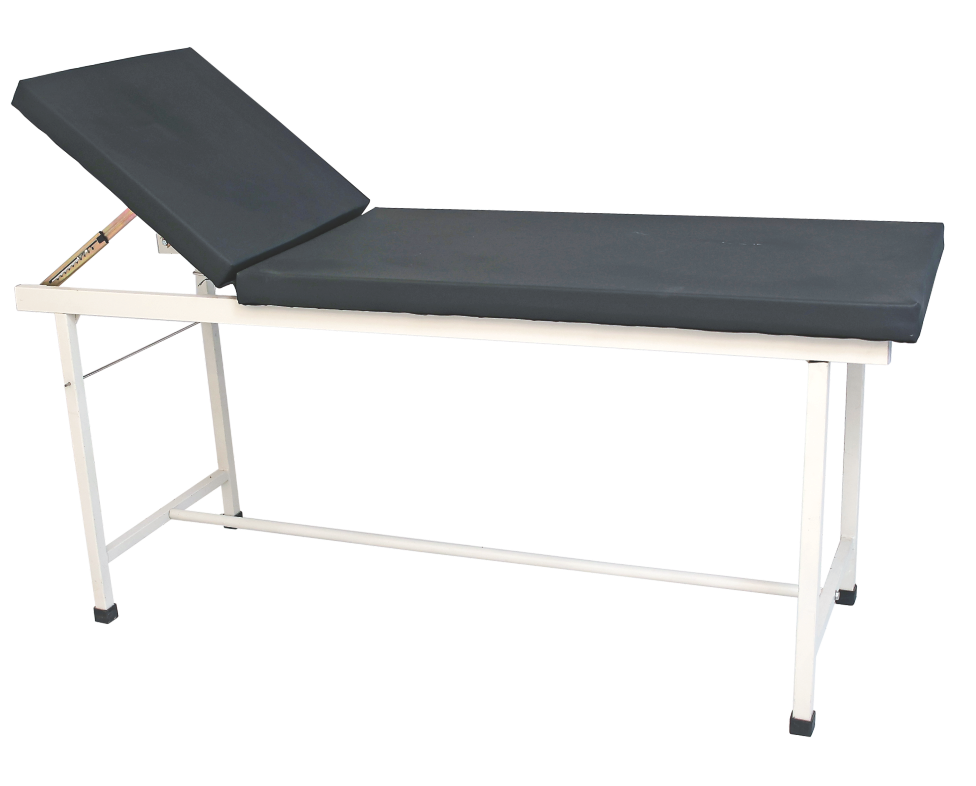

EXAMINATION TABLE P/C(Two Section) VDS-407
Description
Fixed 50mm Foam Mattress with cover top in two section
Framework made of CRCA tubes mounted on PU stumps/shoes.
Back rest adjustable by ratchet.
Finish: Pre-treated & epoxy powder coated
Overall Approx. Size: 1830L x560W x 810H mm

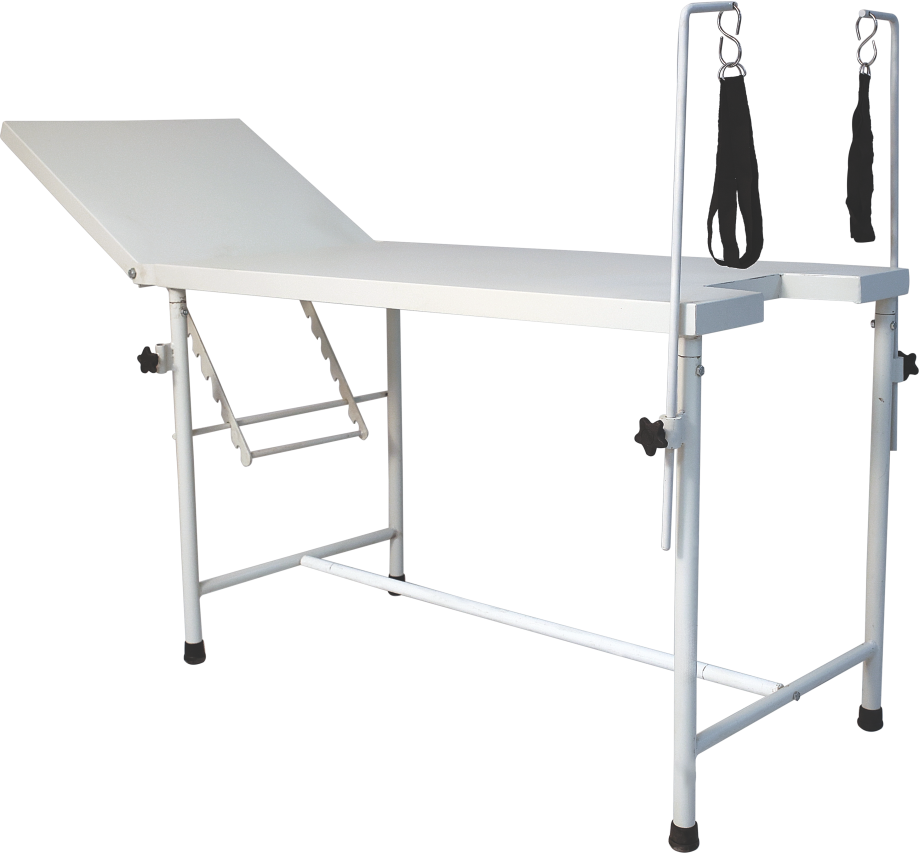

GYNAE EXAMINATION TABLE (2 section) VDS-408
Description
Framework & 2 section top made of CRCA tubes & sheets mounted on PU stumps/shoes.
Backrest adjustable by ratchet mechanism & Perineal Cut at footside with pair of lithotomy poles with straps
Finish: Pre-treated & epoxy powder coated
Overall Approx. Size: 1830L x560W x 810H mm
Optional
Also available in stainless steel
2 section 50mm mattress with Raxin cover.

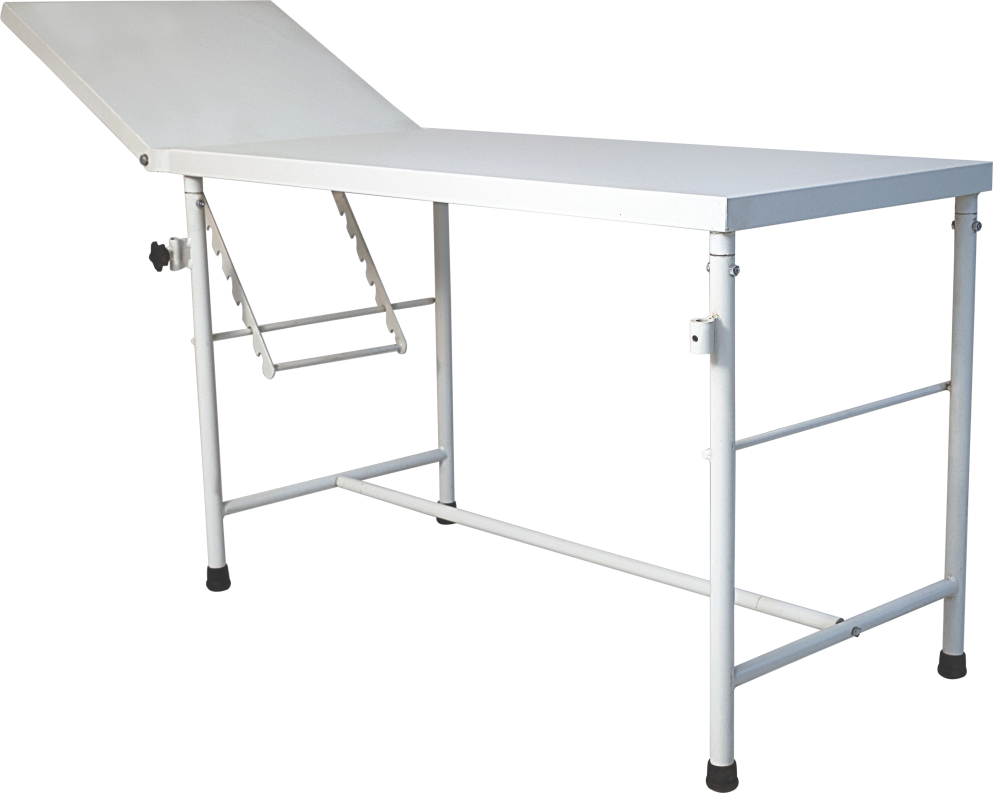

EXAMINATION TABLE (2 section) VDS-409
Description
Framework & 2 section top made of CRCA tubes & sheets mounted on PU stumps/shoes.
Backrest adjustable by ratchet mechanism.
Finish: Pre-treated & epoxy powder coated
Overall Approx. Size: 1830L x560W x 810H mm
Optional
Also available in stainless steel
2 section 50mm mattress with Raxin cover.

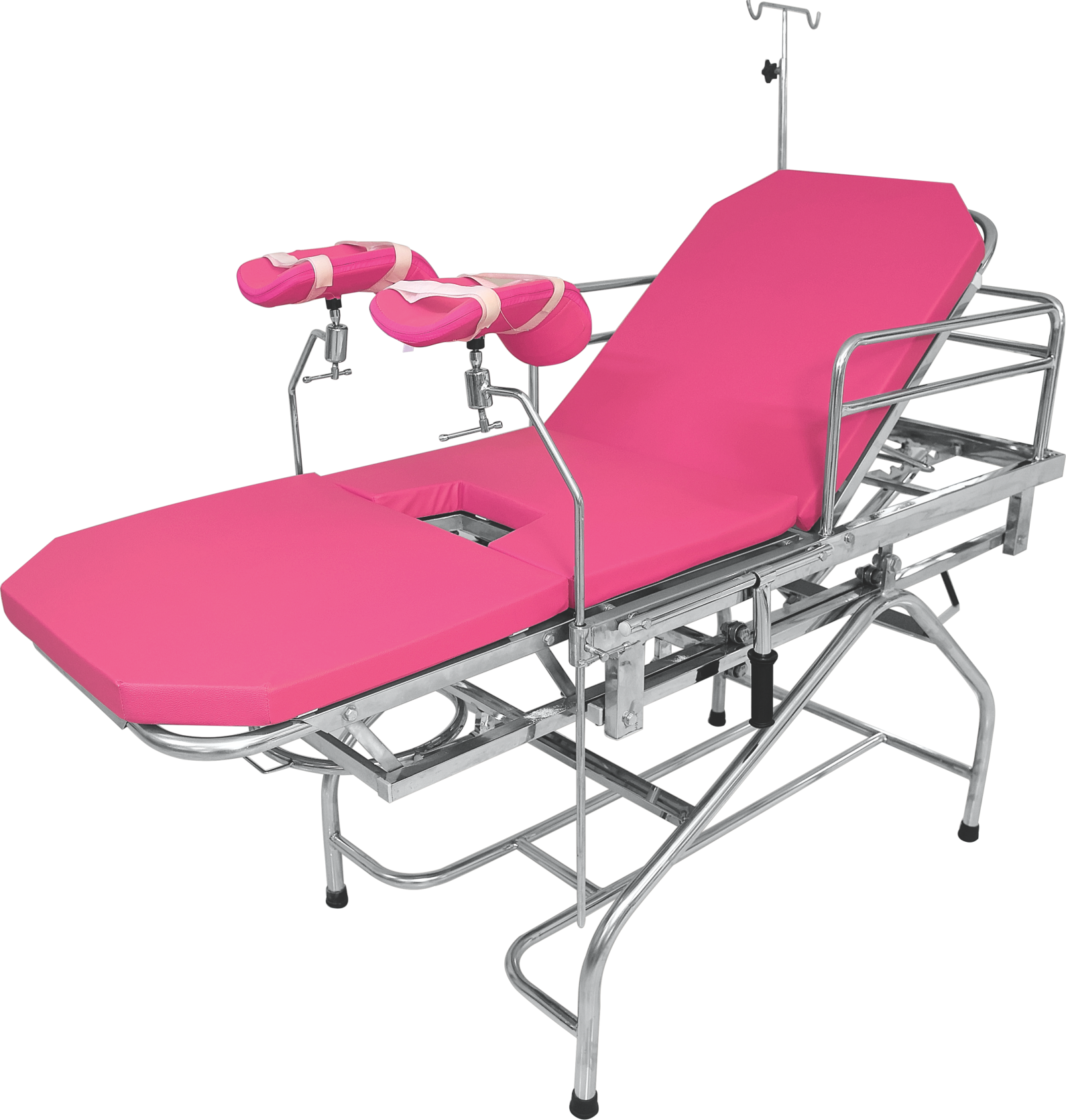

OBSTETRIC LABOUR TABLE (Fixed Height) VDS-504
Description
Stainless steel Head Side Rail easily drop down without using any tools with
Stainless Steel Two drop down individual Side Rails
Tubular framework mounted on PU Heavy Stump/ Shoes.
Three-section top made of Stainless Steel sheet covered with 3 section Removable Mattress.
Fix Height for Better Stability.
Trendelenburg & Reverse Trendelenburg operated by Smooth crank system.
Leg section can Smoothly slide under the main section.
1 Pair of lithotomy foam padded knee crutches.
S.S Telescopic Heavy duty Drip Rod.
Detachable S.S. waste collection Tray
Provided with adjustable S.S. Grip Handles on both sides.
Finish: Stainless Steel Matte & Glossy.
Dimensions
Overall Size: 1900L x 900W x 720mm
Platform Size (full extended): 1800L x 660W mm
Platform Size (Leg section Slide under): 1260L x 660W mm
Backrest angle: 50°
TB / RTB: 9° / 12°
Note : – Also Available in Epoxy Powder Coated (M.S)

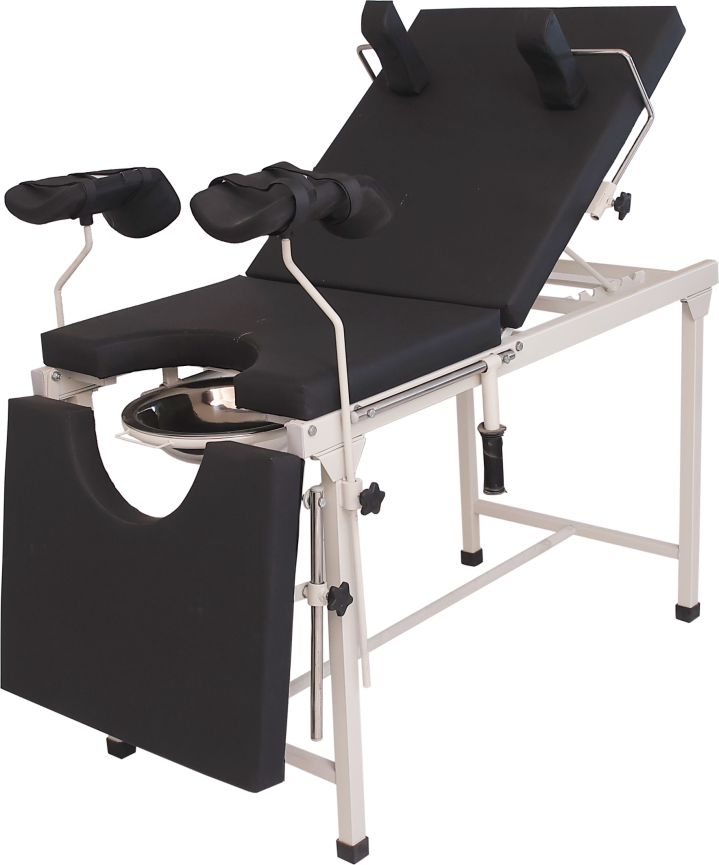

OBSTETRIC DELIVERY TABLE (3 section) VDS-505
Description
Rectangular & square tube frame work mounted on PVC stumps.
Three sections fixed cushioned top.
Backrest, Seat & Leg section adjustable by ratchet mechanism.
Provided with perineal ‘U’ cut.
Provided with SS Waste collection bowls
Single pair of Lithotomy crutches with Belt.
The foot section of the bed can be adjustable- 00-900
Knockdown construction.
Finish: Pre treated& Epoxy Powder Coated.
Overall Size (Approx.): 1830L x 610W x 810H mm

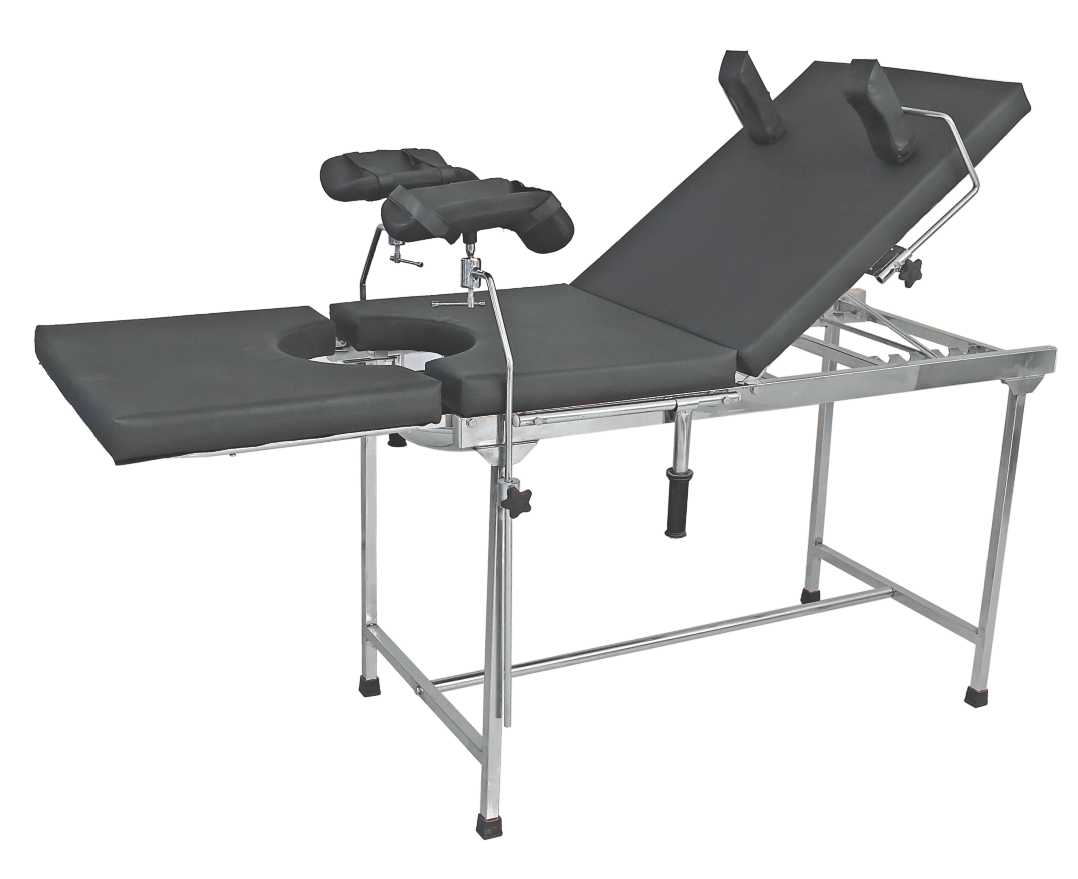

OBSTETRIC DELIVERY TABLE SS (3 section) VDS-506
Description
Rectangular & square tube frame work mounted on PVC stumps.
Three sections fixed cushioned top.
Backrest, Seat & Leg section adjustable by ratchet mechanism.
Provided with perineal ‘U’ cut.
Provided with SS Waste collection bowls
Single pair of Lithotomy crutches with Belt.
The foot section of the bed can be adjustable- 00-900
Knockdown construction.
Finish: all stainless steel matt/glossy
Overall Size (Approx.): 1830L x 610W x 810H mm

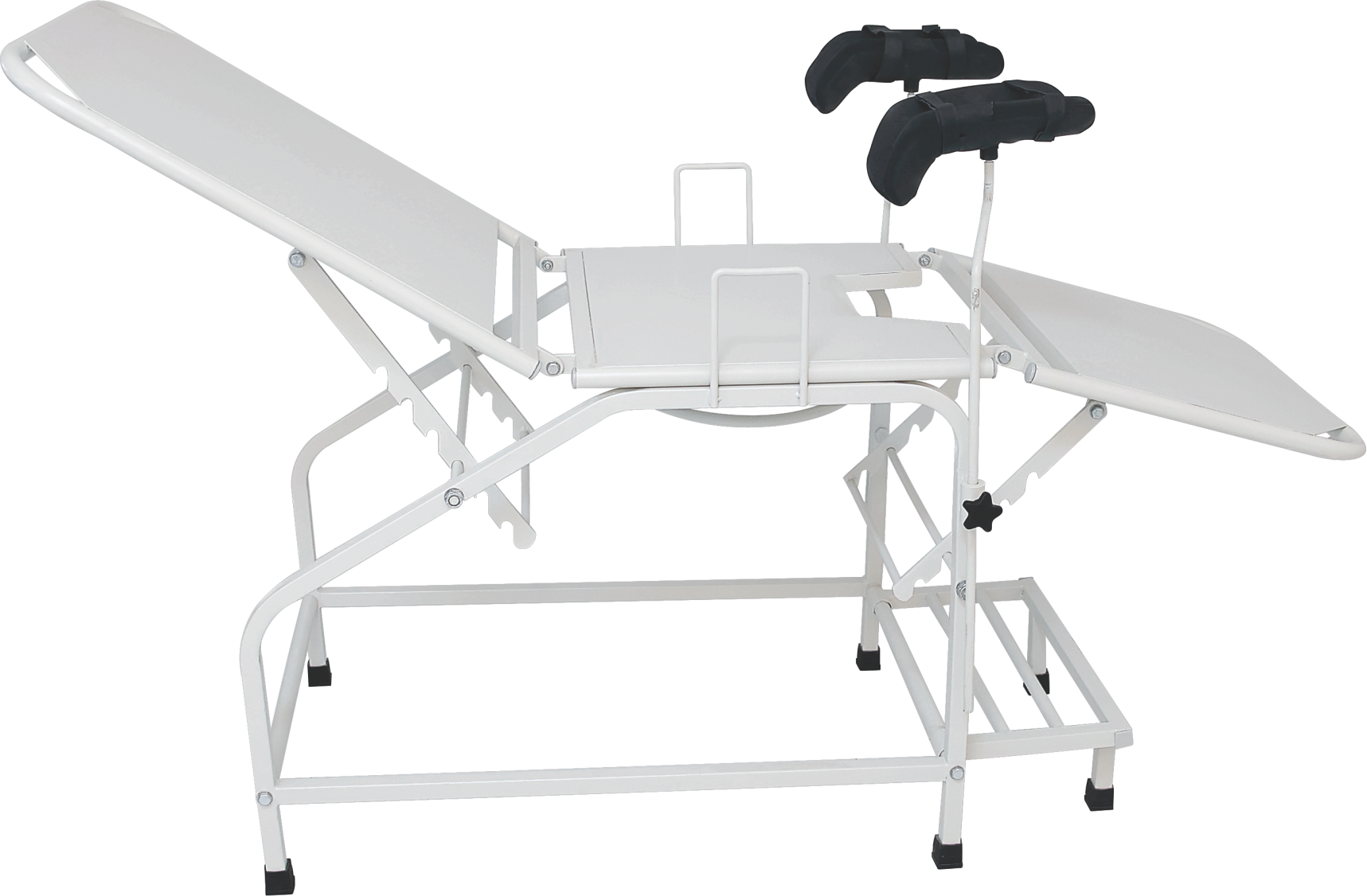

GENERAL LABOUR TABLE VDS-507
Description
Rectangular & square tube frame work mounted on PVC stumps.
Three sections fixed cushioned top.
Backrest, Seat & Leg section adjustable by ratchet mechanism.
Provided with perineal ‘U’ cut.
Provided with SS Waste collection bowls
Single pair of Lithotomy crutches with Belt.
The foot section of the bed can be adjustable- 00-900
Knockdown construction.
Finish: all stainless steel matt/glossy
Overall Size (Approx.): 1830L x 610W x 810H mm

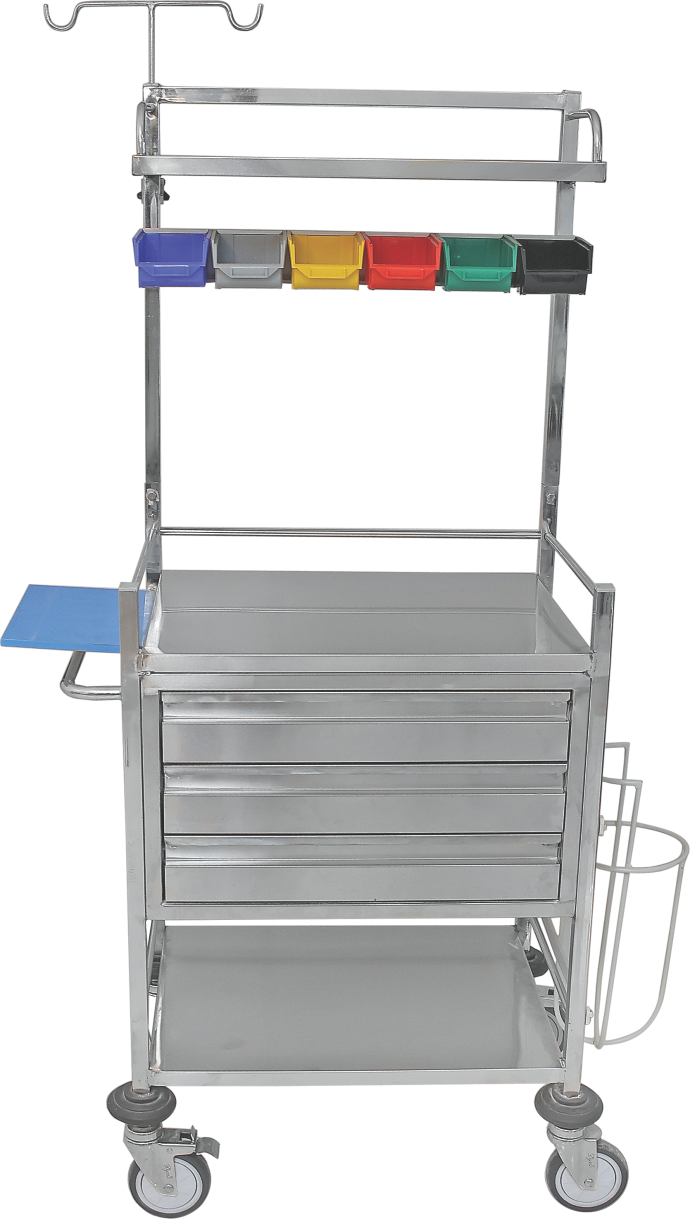

CRASH CART FULLY SS VDS-606
Description
Framework made-up of SS Tubes.
SS storage cabinet with three drawers.
Provision of M.S. oxygen cylinder holder
Six colour removable bins.
Provided with three SS shelves.
Provided with SS IV rod and corner buffer and cardiac massage board.
The cert is mounted on 125mm dia castors 2 with brakes.
Note : Also available in epoxy powder coated.

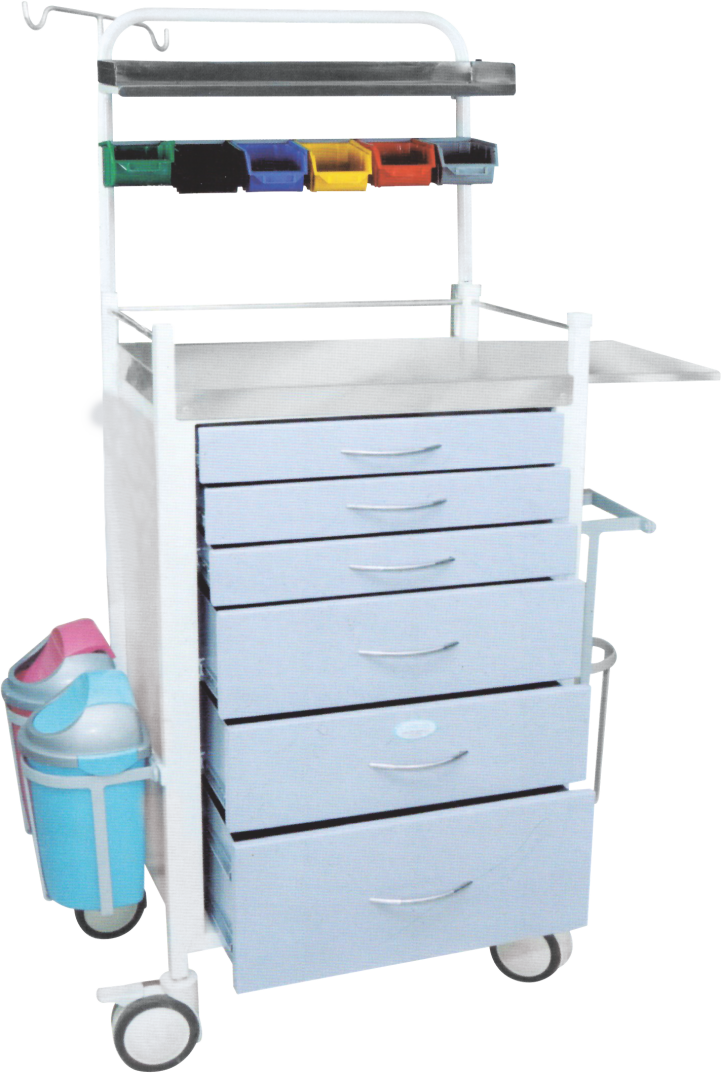

MULTI PURPOSE CRASH CART VDS-607
Description
Made of CRCA pipes/sheet
Provided with six drawer of two different sizes
First Three Drawers 520 x 410 x 50 mm
Fourth & Fifth Drawer : 525 x 415 x 120mm
Sixth Drawer : 535 x 425 x185 mm
Mounted on 125mm twin castors two with breaks.
Accessories Oxygen cylinder Six coloured PVC Bins, Cardiac Massage Board, 2 Dustbin
The complete metal components are pre treated and epoxy powder boated
Overall Dimension :1000L x 585W x 1125H mm
CASE HISTORY TROLLEY DOUBLE VDS-608
Description:
Framework & shelves made of ABS
Mounted on 75mm castors
25 Case sheet Holders provision
Approx. Sizes 340x400x850mm
CASE HISTORY TROLLEY SINGLE VDS-609
Description:
Framework & shelves made of ABS
Mounted on 75mm castors
50 Case sheet Holders provision
Approx. Sizes 680x400x850mm

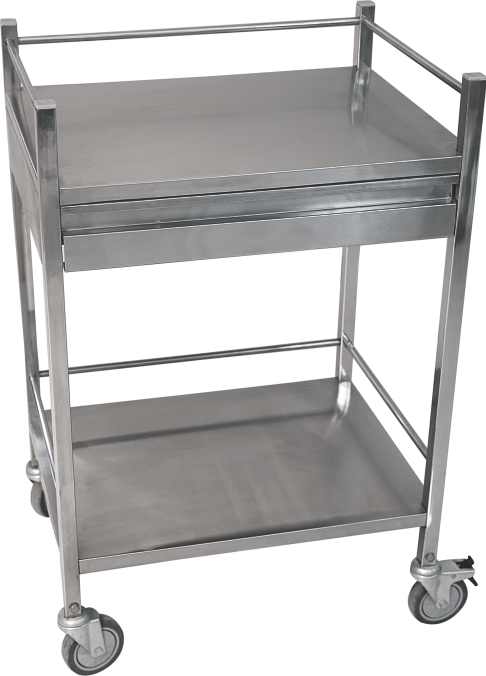

INSTRUMENT TROLLEY (S.S) with Single Drawer VDS-610
Description
Framework made-up of S.S. tubes
Two S.S. Shelves with S.S. railing on 3 sides
The trolley mounted on 100 mm (4”) diagonal locking Castors
Finish: All stainless steel
610 L x 460 W x 815 H mm
760 L x 460 W x 815 H mm
915 L x 610 W x 815 H mm

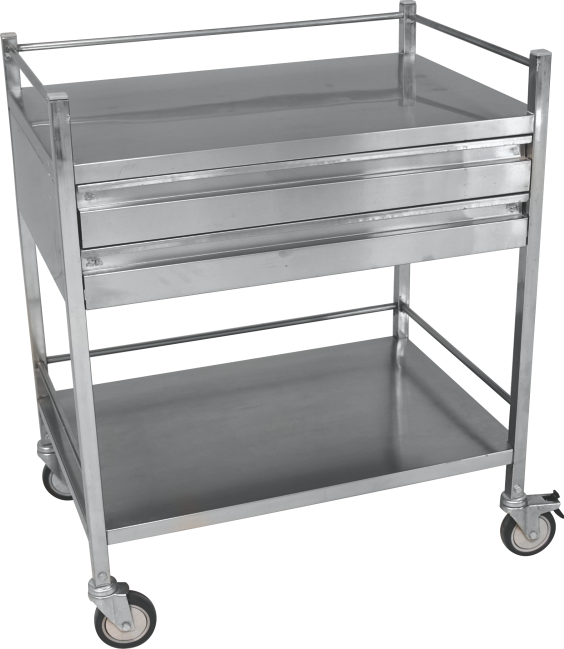

INSTRUMENT TROLLEY (S.S) with Double Drawer VDS-611
Description
Framework made-up of S.S. tubes
Two S.S. Shelves with S.S. railing on 3 sides
The trolley mounted on 100 mm (4”) diagonal locking Castors
Finish: All stainless steel
610 L x 460 W x 815 H mm
760 L x 460 W x 815 H mm
915 L x 610 W x 815 H mm

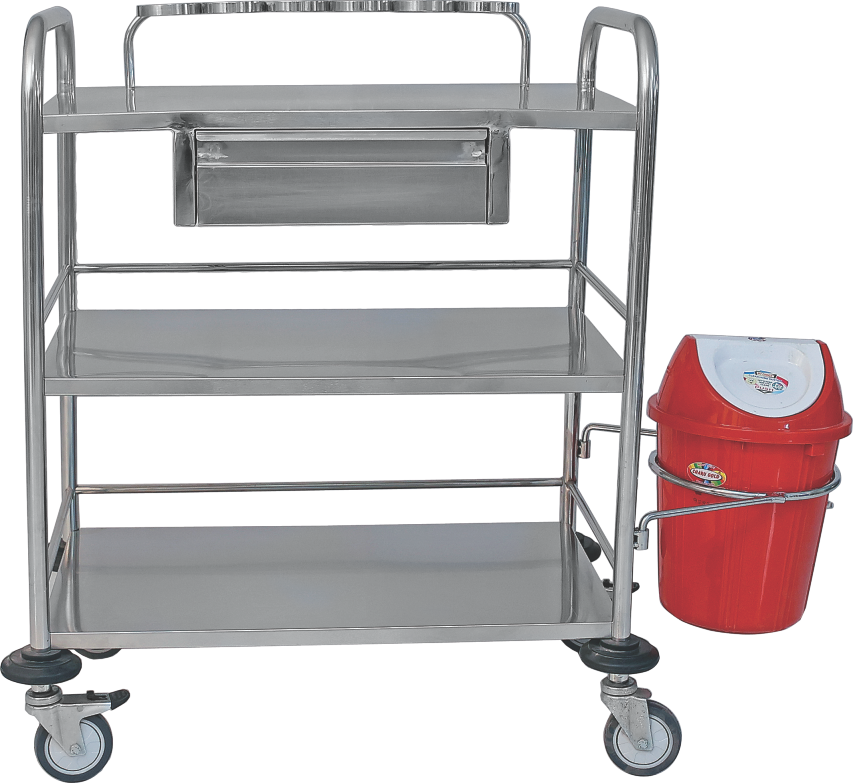

CARE TROLLEY 3 SHELVES (S.S) VDS-612
Framework made-up of S.S. tubes
Three S.S. Shelves with central sliding drawer with 3 side railing.
6 rings on upper shelves
The trolley mounted on 100 mm diagonal locking Castors
Finish: All stainless steel
760 L x 460 W x 815 H mm
915 L x 610 W x 815 H mm
Optional : SS Dust Bin

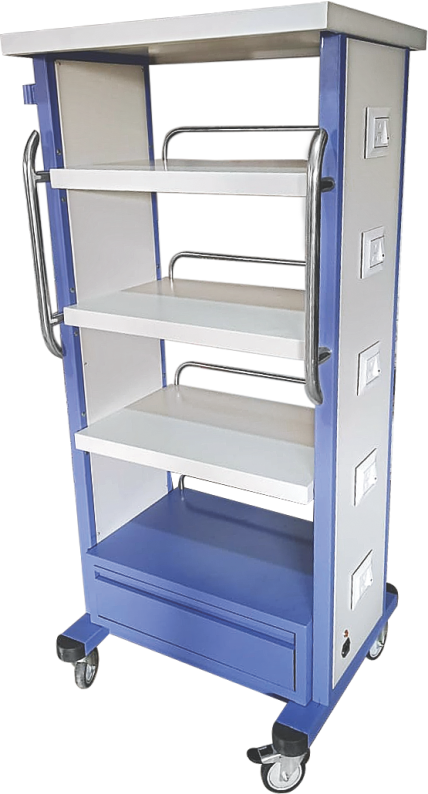

LAPROSCOPIC TROLLEY VDS-613
Description:
Trolley made-up of CRCA sheet & Shelves & Single Drawer.
Trolley has two handle for each of relocation.
The trolley mounted on 125mm (5”) Diagonal Locking Castors.
Provided with Switch & Socket for medical equipment along with 1 Main MCB for protection
Supplied with S.S. IV Rod and MS Oxygen Cylinder Cage.
Finish: Pre-treated and Epoxy Powder Coated
Overall Approx. Size: 700L x 620W x 1460H mm.

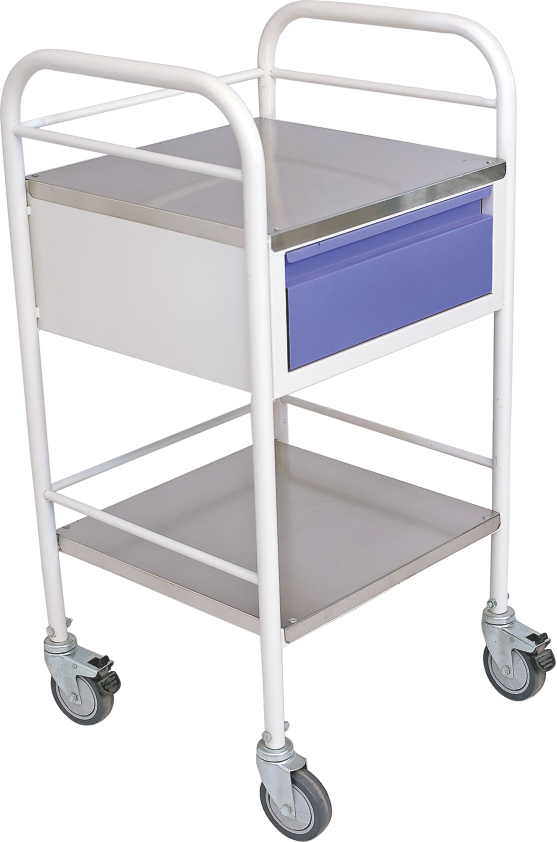

UTILITY TROLLEY VDS-614
Description:
Framework made of Tubular CRCA. pipe.
Two Shelves made of Stainless steel.
One Drawer made of CRCA.
Trolley mounted on 100mm (4”) Diagonal locking Castors
Provided with S.S. I.V. Rod.
Overall Size (Approx.): 520L x 450W x 940H mm.
Top Size (Approx.): 450L x 450W mm.

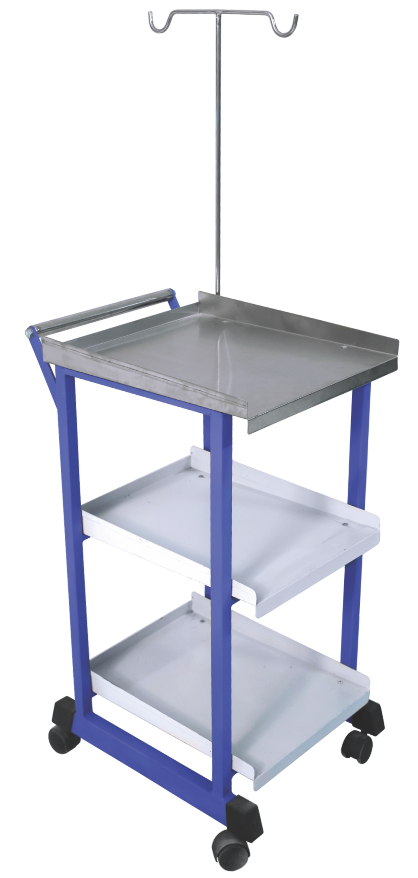

ECG TROLLEY VDS-615
Description:
Framework made of Tubular CRCA. pipe.
Two Shelves made of Stainless steel.
One Drawer made of CRCA.
Trolley mounted on 100mm (4”) Diagonal locking Castors
Provided with S.S. I.V. Rod.
Overall Size (Approx.): 520L x 450W x 940H mm.
Top Size (Approx.): 450L x 450W mm.

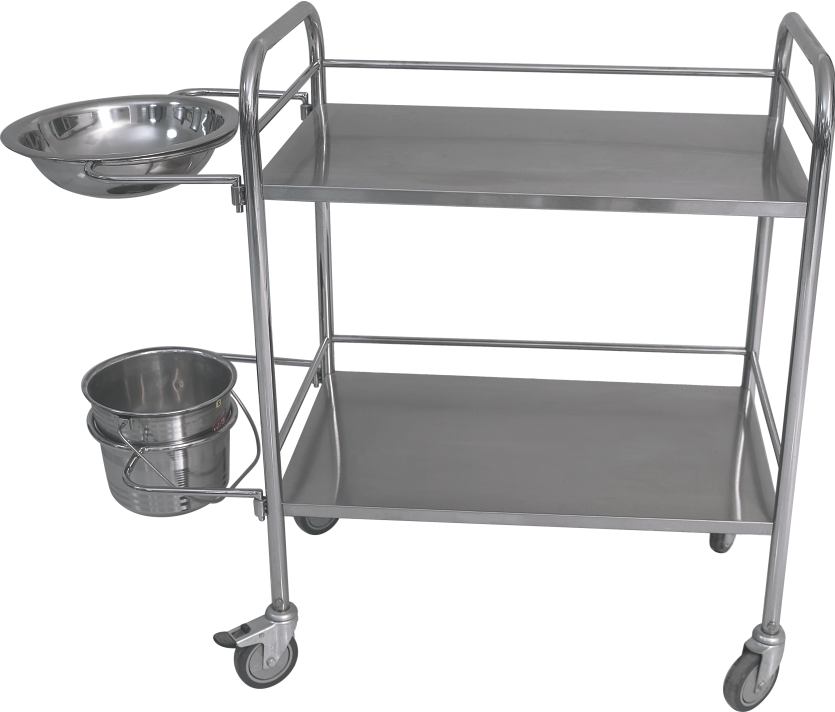

DRESSING TROLLEY VDS-616
Description
Framework made-up of S.S. tubes
Two S.S. Shelves with S.S. railing on 3 sides
The trolley fitted S.S. bucket and S.S bowl
The trolley mounted on 100 mm diagonal locking Castors
Bowl & Bucket Holding cage on One Side in Knockdown position.
Finish: All stainless steel
Overall Size (Approx.): 1010L x 460W x 810H mm.

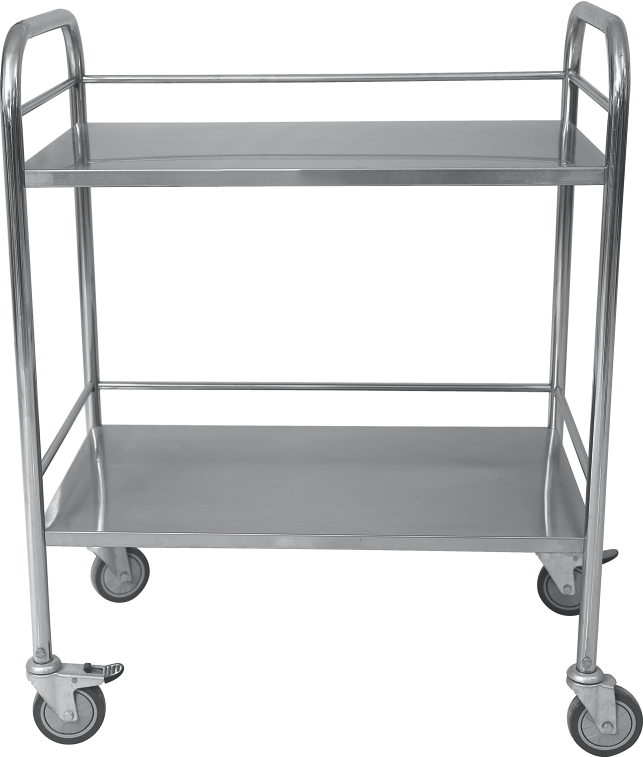

INSTRUMENT TROLLEY (S.S) VDS-617
Description
Framework made-up of S.S. tubes
Two S.S. Shelves with S.S. railing on 3 sides
The trolley mounted on 100 mm diagonal locking Castors
Finish: All stainless steel
610 L x 460 W x 815 H mm
760 L x 460 W x 815 H mm
915 L x 610 W x 815 H mm

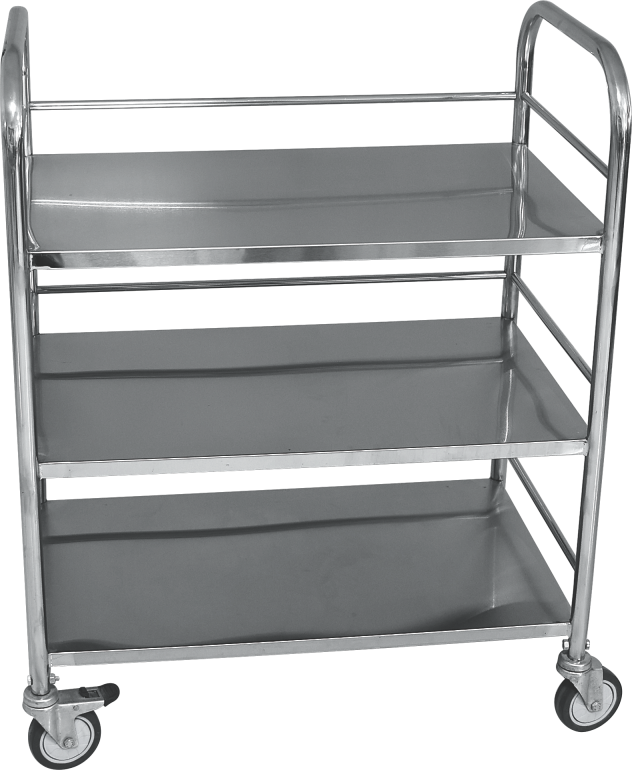

INSTRUMENT TROLLEY 3 SHELVES (S.S) VDS-618
Description
Framework made-up of S.S. tubes
Three S.S. Shelves with S.S. railing on 3 sides
The trolley mounted on 100 mm diagonal locking Castors
Finish: All stainless steel
760 L x 460 W x 815 H mm
915 L x 460 W x 815 H mm
915 L x 610 W x 815 H mm

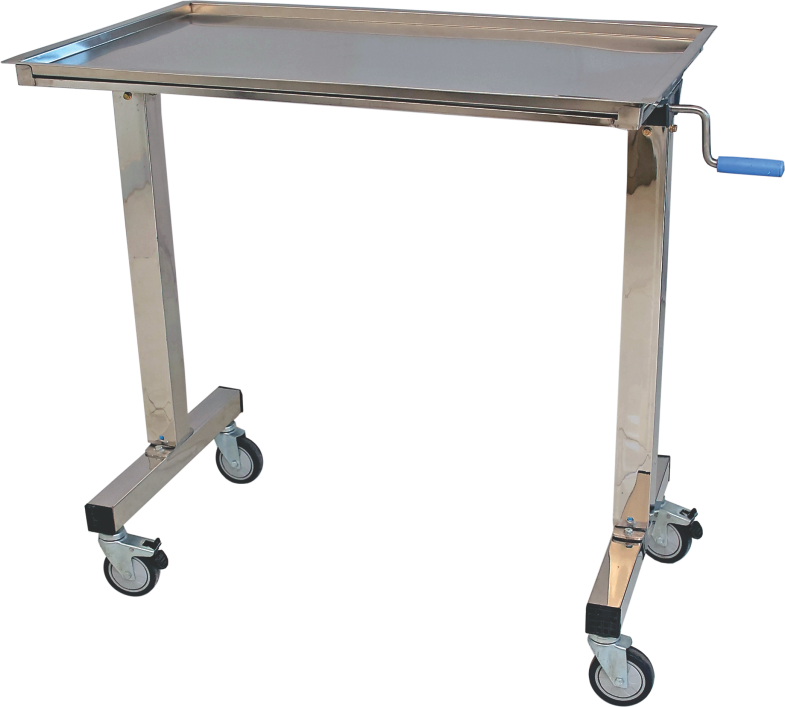

MAYO'S TROLLEY (Double Gear) VDS-619
Description:
Both side Frame work made of S.S. rectuangler / Square tubes
Height adjustable by both side gear handle
Tray made of 0.9 mm thick S.S. 304 Grade sheet
Table mounted on 100 mm Diagonal locking castors
Finish: S.S. Frame with S.S. Removable tray
Overall Size (Approx.): 1220L x 520W x 910H mm
Tray Size (Approx.): 925L x 545W mm

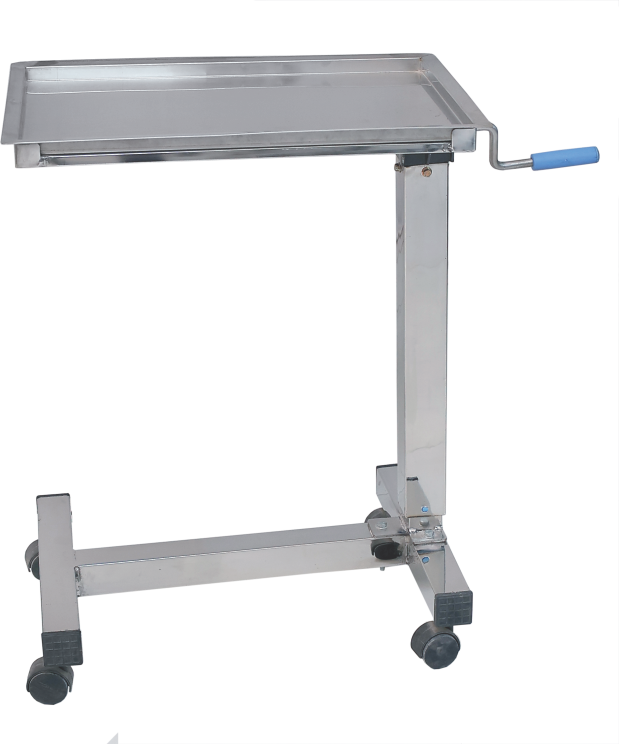

MAYO'S TROLLEY (Gear Single) VDS-620
Description:
Frame work made of S.S. rectuangler / Square tubes
Height adjustable by Single gear handle
Table mounted on 50 mm Diagonal locking castors
Finish: S.S. Frame with S.S. Removable tray
Overall Size (Approx.): 600L x 400W x 900 – 1200H mm.
Tray Size (Approx.): 625L x 440W mm
Note: Also avail3able M.S Framework S.S Tray.

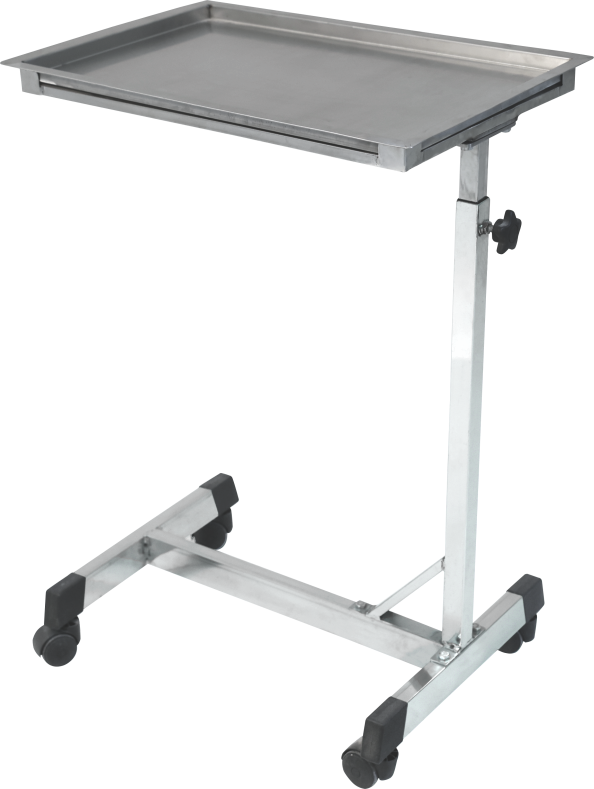

MAYO'S TROLLEY (Knob) VDS-621
Description:
Frame work made of S.S. rectuangler / Square tubes
Height adjustable by manual Knob.
Table mounted on 50 mm Diagonal locking castors
Finish: S.S. Frame with S.S. Removable tray
Overall Size (Approx.): 600L x 400W x 900 – 1200H mm.
Tray Size (Approx.): 625L x 440W mm
Note: Also available M.S Framework S.S Tray.

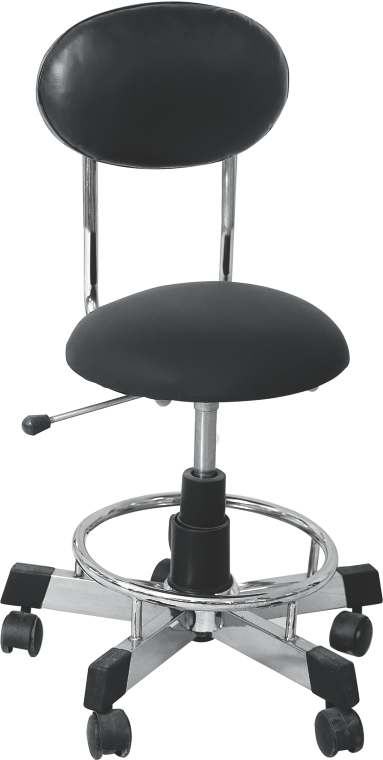

SURGEON CHAIR VDS-701
Description
Cushioned top with 5 leg base mounted on 5cms castors.
Adjustable height with pneumatic pump
Provided with back support and tubular ring for foot support

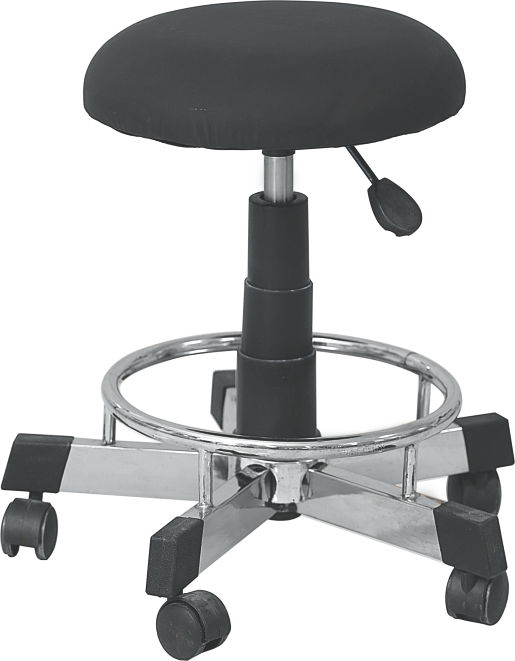

SURGEON STOOL VDS-702
Description
Cushioned top with 5 leg base mounted on 5cms castors.
Adjustable height with pneumatic pump
Tubular ring for foot support

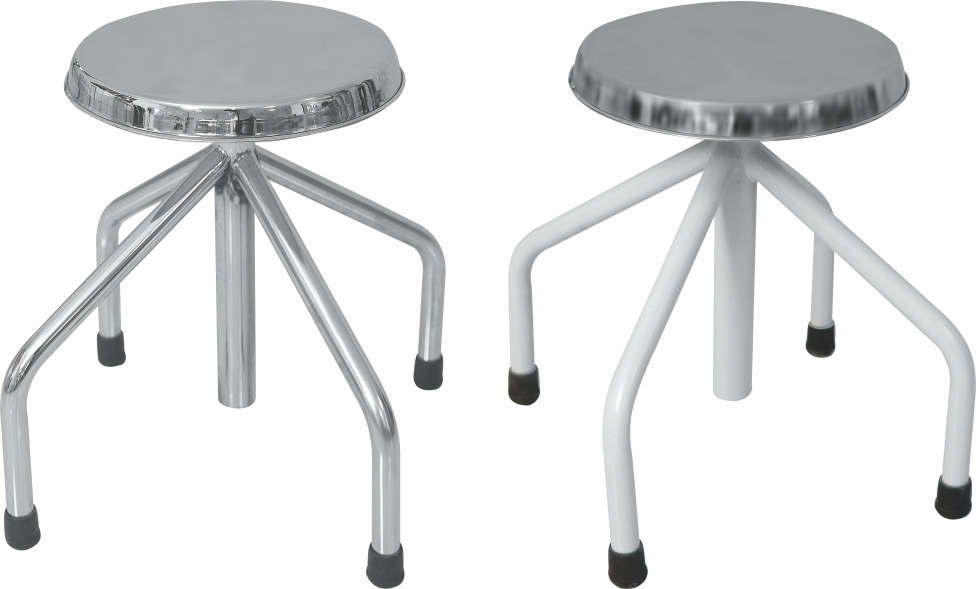

REVOLVING STOOL (All SS) VDS-703
Description
Four SS. Legs base fitted with PVC Stumps/Shoes.
Height adjustable by mechanical screw.
SS Revolving top.
Finish: Stainless Steel matte & glossy
Overall Size (Approx.): 480L x 480W x 500H mm.
Also available in P.C Frame work with SS Top
REVOLVING STOOL (Cushioned Top) VDS-704
Description
Four legs S.S. base fitted with PU Stumps/Shoes
Height adjustable by mechnical screw
Moulded Cushioned Revolving top.
Finish: SS glossy finish.
Overall Size (Approx.): 510Lx 510W x 540H mm.
Also available in P.C Frame work

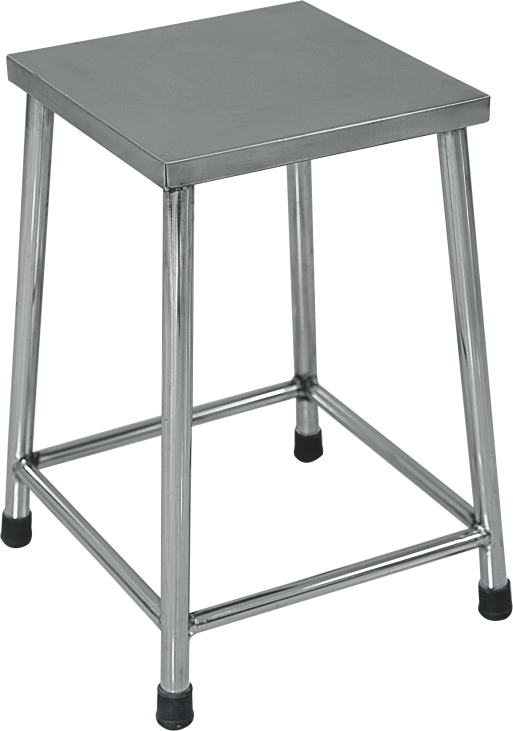

VISITOR STOOL VDS-705
Description
Frame & Top made of SS. Sheet & SS Tube
Legs fitted with PU Stumps/Shoes.
Finish: Stainless Steel matte & glossy finish.
Overall Size (Approx.): 350L x 350W x 490H mm
Note: Also available CRCA Framework.
TROLLEY FOR OXYGEN CYLINDER VDS-706
Description
Framework made of CRCA tube mounted on 100 mm castors at rear.
Finish: Pre-treated and Epoxy powder coated
For D type cylinder (Big Cylinder)
For B type cylinder (Small Cylinder)

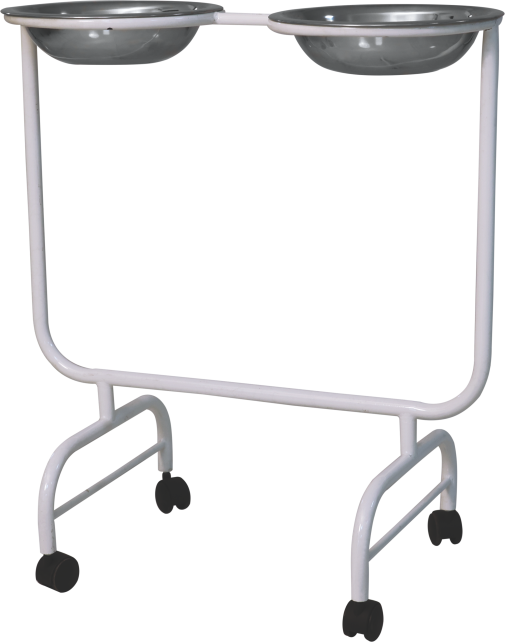

WASH BASIN STAND (Double) VDS-707
Description:
Basin holder Ring & Vertical Pipe made of CRCA tube
Mounted on MS Base with 50mm dia castor.
2 Stainless Steel basin dia 16”
Finish: Epoxy Powder Coated.

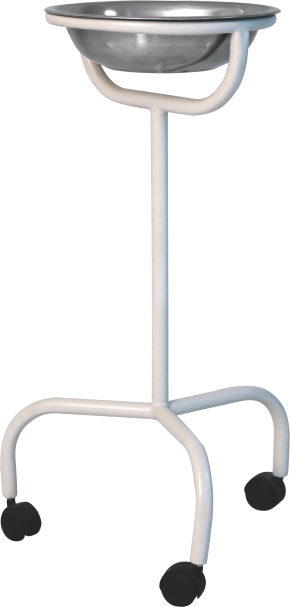

WASH BASIN STAND (Single) VDS-708
Description:
Basin holder Ring & Vertical Pipe made of CRCA tube
Mounted on MS Base with 50mm dia castor.
Single Stainless Steel basin dia 16”
Finish: Epoxy Powder Coated

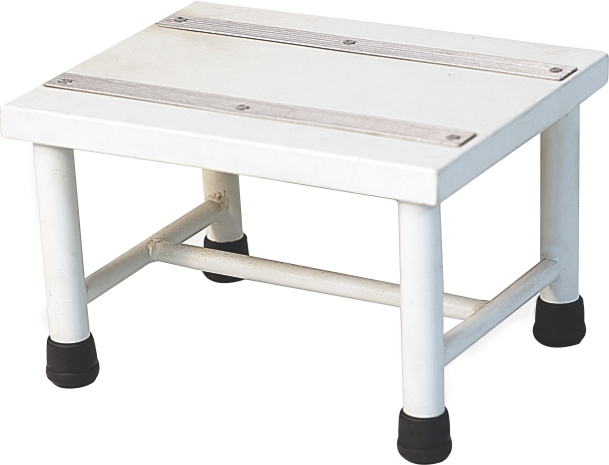

FOOT STEP SINGLE P/C VDS-709
Description
Made from S.S. Sheet mounted on PVC stumps
Dimensions : 18”L x 9”W x 9”H

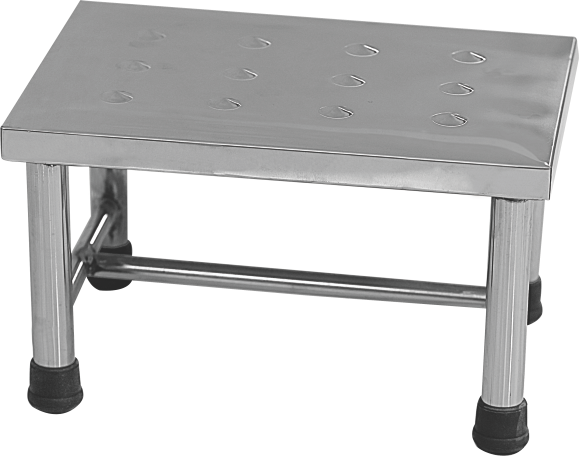

FOOT STEP SINGLE SS VDS-710
Description
Made from S.S. Sheet mounted on SS stumps
Dimensions : 18”L x 9”W x 9”H

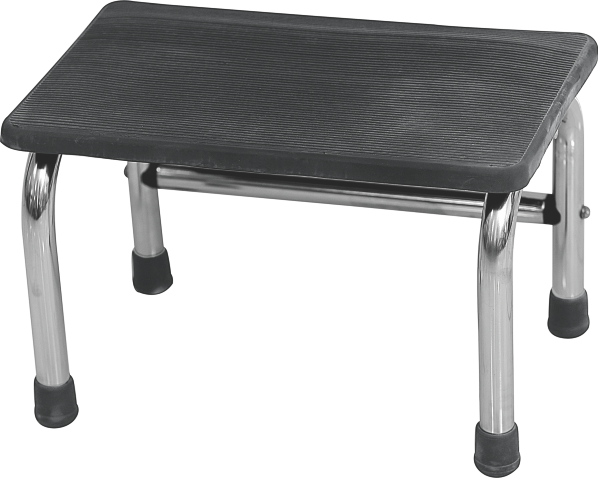

FOOT STEP SINGLE MOLDED RUBBER VDS-711
Description
Stainless steel tubular legs fitted with PVC stump
Non-skid molded rubber matting steps top
Knock down construction
Dimensions : 400W x 280D x 225H mm
Also available in Epoxy Powder coating

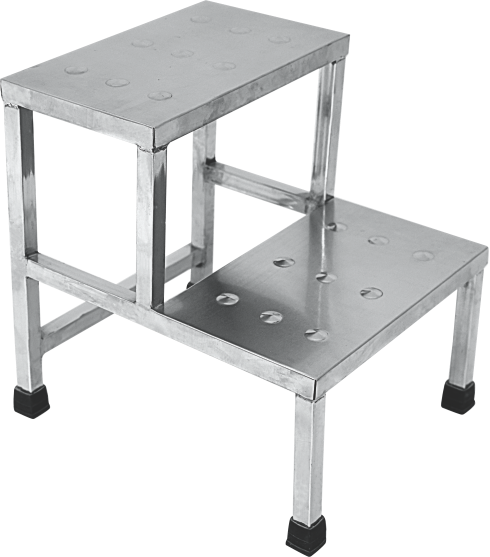

FOOT STEP DOUBLE SS VDS-712
Description
Made from S.S. Sheet mounted on PVC stumps
Dimensions : 18”L x 18”W x 18”H
First Step Height : 230mm
Second Step Height : 450mm
Also available in CRCA sheet Epoxy Powder coated

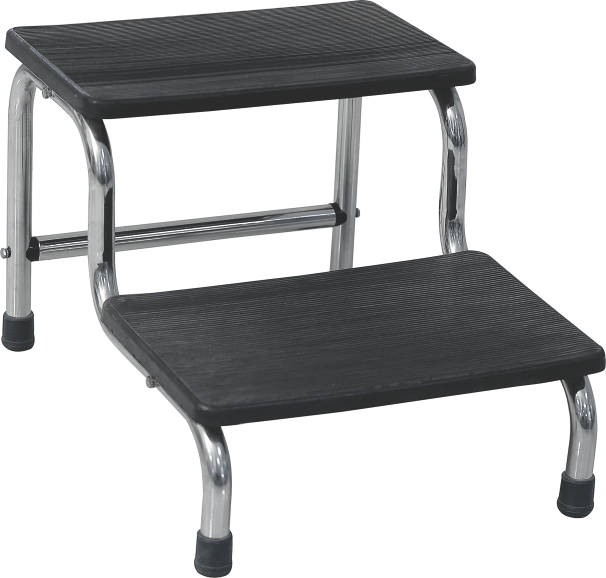

FOOT STEP DOUBLESS MOLDED RUBBER VDS-713
Description
Stainless steel tubular legs fitted with PVC stump
Non-skid molded rubber matting steps top
Knock down construction
Dimensions : 525W x 400D x 350H mm

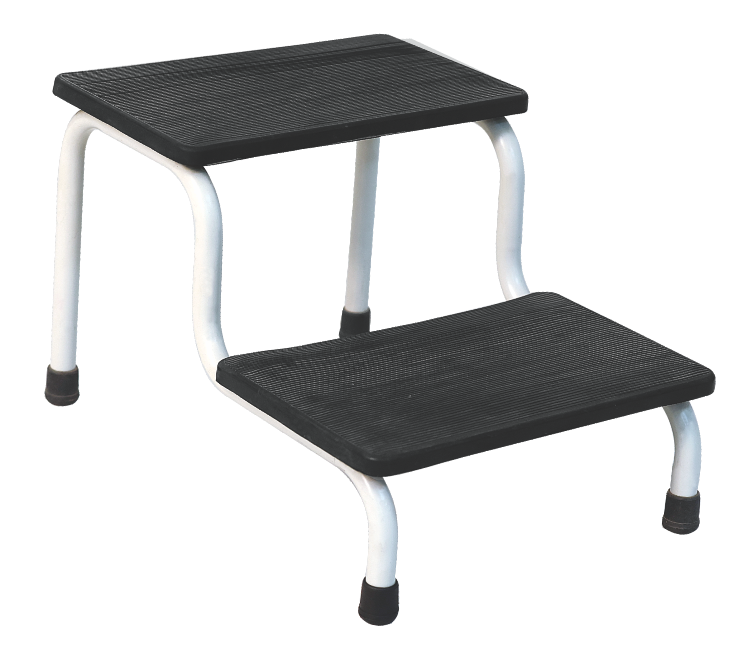

FOOT STEP DOUBLEP/C MOLDED RUBBER VDS-714
Description
CRCA tubular legs fitted with PVC stump
Non-skid molded rubber matting steps top
Pre treated and Epoxy Powder Coated
Knock down construction
Dimensions : 525W x 400D x 350H mm

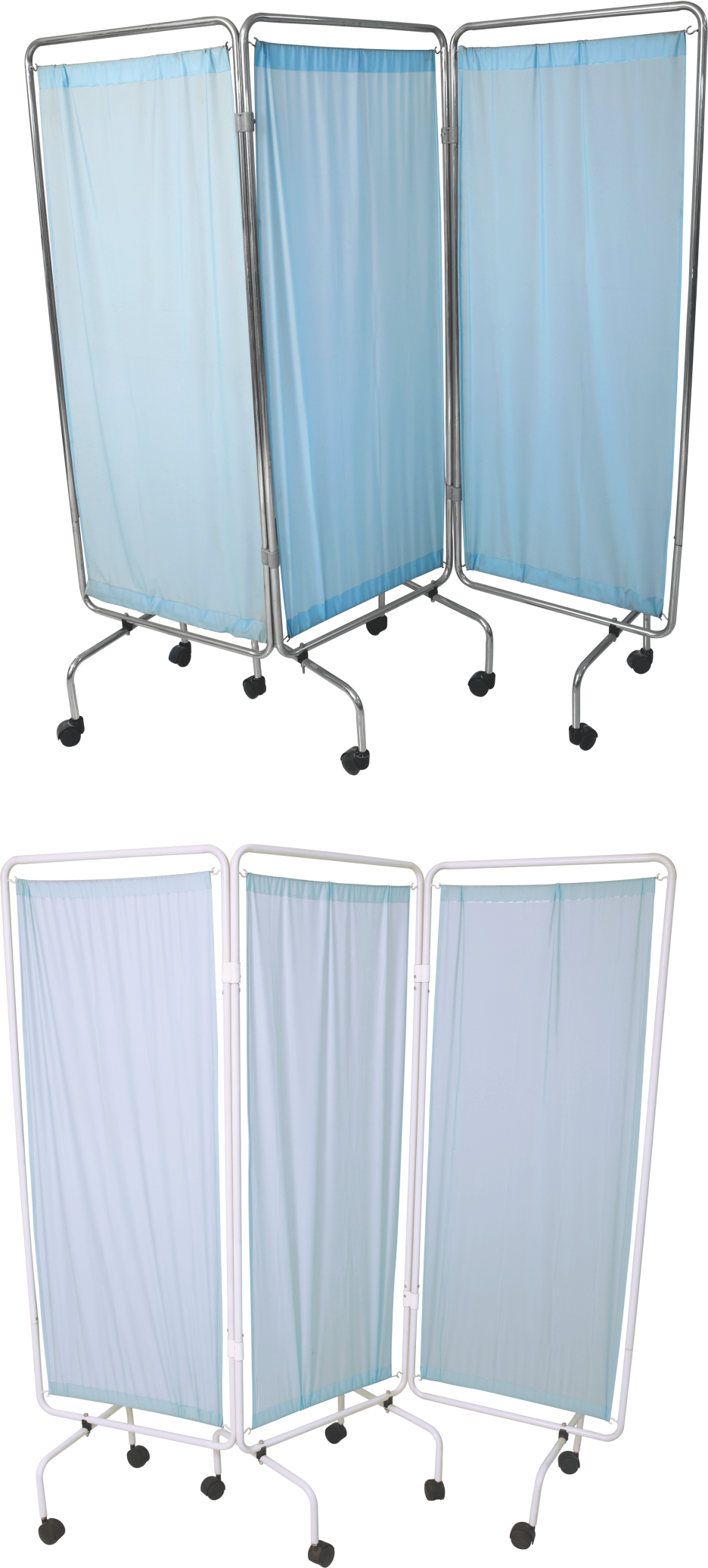

BED SIDE SCREEN SS(3 panels) VDS-715
Description
Framework made of S.S. Tubular in three section.
Legs mounted on 50mm dia castors with hooks and spring wire.
Plastic washable curtain in blue colour.
Finish: Stainless Steel Glossy
Overall Size: 1727H x 1829L mm

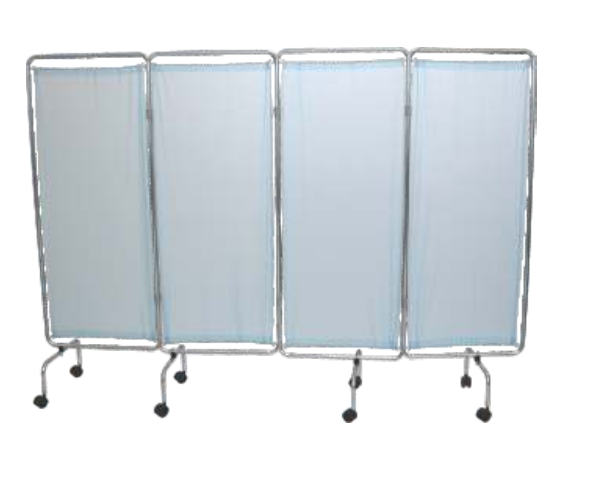

BED SIDE SCREEN SS(4 panels) VDS-716
Description
Framework made of S.S. Tubular in Four section.
Legs mounted on 50mm dia castors with hooks and spring wire.
Plastic washable curtain in blue colour.
Finish: Stainless Steel Glossy
Overall Size: 1727H x 2438L mm
DRESSING DRUMS (SEAMLESS SS) VDS-717
Available Sizes:
6”x4”, 6”x6”, 9”x5”, 11”x5”, 11”x9”, 14”x9”, 15”x12”
INSTRUMENT TRAY (SEAMLESS SS) VDS-718
Available Sizes:
8”x6”, 9”x6”, 10”x8”, 11”x7”, 12”x8”, 12”x10”, 15”x12”, 18”x12”
CATHETER TRAY VDS-719
Available Sizes:
8”x3”, 16”x4”
BED PAN (SS) VDS-720
Available for Male / Female
URINAL POT (SS) VDS-721
Available for Male / Female
BASIN/BOWL (SS) VDS-722
Available Sizes: 12”, 16”
KIDNEY TRAY (SEAMLESS SS) VDS-723
SEAMLESS SS
KIDNEY TRAY (SEAMLESS SS) VDS-724
Available Sizes:
6”, 8”, 10”, 12
ENEMA CANE (SS) VDS-725
ENEMA CANE
KICK BUCKET VDS-726
Description
Tubler framework mounted on 50cms castors.
Stainless Steel Bucket Cap. 12Ltrs.
Pre Treated and Epoxy powder coated.
Size : H12” x 14” Dia
Also available in Stainless steel.
KICK BUCKET VDS-727
Description
SS Bucket with stainless steel frame with castors.
Dimension : 35 D x 30H cm
DUST BIN VDS-728
Description
Foot padel Operated.
Stainless Steel construction.
Removable plastic bin
Base fitted with Anti-Skid Plastic.
Capacity : 10/15/20/30 Ltrs
BIO MEDICAL WASTE BIN (Only Bin) VDS-729
Description
Bins made up of plastic.
Bins are foot operated
Available in red / blue / black/ yellow/ white / green colours.
Available sizes: 20 ltrs, 30 ltrs, 80 ltrs with 2 pcs rear wheels, 100-120 ltrs with 2 pcs rear wheels but without foot operated.
BIO MEDICAL WASTE BIN (SETS) VDS-730
Description
Bins made up of plastic.
Framework made up of SS tubes.
Bins are foot operated
Sets of 4 bins / 3 bins / 2 bins can be altered as required, standard is 4 bins in 1 set
Available in red / blue / black/ yellow/ white / green colours
MATTRESS FOR HOSPITAL BEDS VDS-731
Description
4 Section PU Foam 4” Mattress with Premium Zipper Rexine Cover for ICU & Fowler Bed
Mattress 2 Section PU Foam 4 VDS-732
Description
2 Section PU Foam 4” Mattress with Premium Zipper Rexine Cover for Semi Fowler Bed
Mattress Single Section PU Foam 4 VDS-733
Description
Single Section PU Foam 4” Mattress with Premium Zipper Rexine Cover for Plain &Pediatric Bed
TWO FOLDING STRETCHER VDS-734
Description
The product is made of high qualityaluminum and polyester fabric, light weight and comfortable.
Open size : 2050 x 530 x 130mm
Folded size : 1020 x 170 x 80mm
Carrying Capacity ; 160kg.
FOUR FOLDING STRETCHER VDS-735
Description
The product is made of high qualityaluminum and polyester fabric, light weight and comfortable.
Open size : 2120 x 550 x 130mm
Folded size : 580 x 140 x 240mm
Carrying Capacity ; 160kg.
SOILED LINEN TROLLEY WITH PLASTIC BUCKET VDS-736
Description
Framework & Push handle made of SS tubular
Mount on 100mm Diagonal castors
100ltrs. Capacity Premium quality washable plastic bucket.
Finish; Stainless steel glossy .
Aprox. Sizes 650x530x930mm.
Note: also available Epoxy Powder Coated framework
SOILED LINEN TROLLEY WITH CANVAS BAG VDS-737
Description
Framework made of SS tubular
Mount on 100mm Diagonal castors
Superior quality of canvas bag.
Finish; Stainless steel glossy.
Aprox. Sizes 520x515x910mm
SALINE STANDS VDS-738
Description
SS pipe & rod (4 hooks) with ss base
SS pipe & rod (2 hooks) with ss base
SS pipe & rod (4 hooks) with plastic base
SS pipe & rod (2 hooks) with plastic base
MS pipe & SS rod with MS base
MS pipe & SS rod with plastic base
